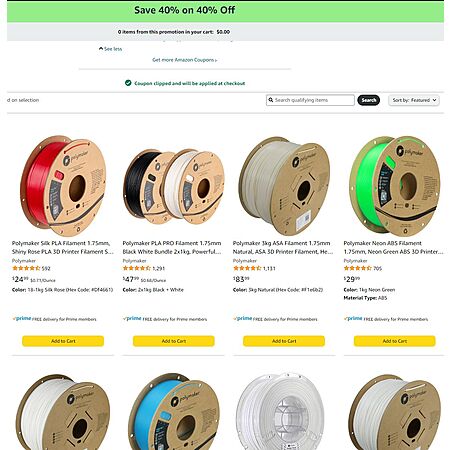

Polymaker 3D printer filament on Amazon - Save 40% - more items available
Amazon
Visit AmazonGood Deal
Bad Deal
Save
Share
14 Comments
Sign up for a Slickdeals account to remove this ad.
https://www.amazon.com/dp/B0B45PH...J4WQM
Those wanting to try the material first can get the "Sample Box 3":
https://www.amazon.com/dp/B07SC67...J4WQM
This YT tester showed PA6-GF (and PA6-CF, not on this sale) maintained form to 200 degrees C:
https://youtu.be/cQb-hbr1KYY?t=1288
Note that PA6-GF is a Nylon/glass-fiber blend. Nylon absorbs moisture, while glass fiber is even more abrasive than carbon fiber - there would be some wear of the metal heartbreak and the extruder gear barbs.
An investment in hardened nozzles and a dry box- near-DIY, in order to fit the on-sale 3KG spool (Dia: 250, width: 117.2±2mm)- comes with the territory, along with a prepped Garolite/G10 or Borosilicate Glass/PVA-glue build plate.
Our community has rated this post as helpful. If you agree, why not thank Edbmsm
------
EDIT: Gave the wrong stepper motor type- that round LDO pancake won't work- need around a 20mm motor shaft, 5mm diameter, with a flat (to use with the gear in the M4 hardware kit). Here's a high-temp pancake 4220 that should work:
https://www.printedsoli
I was thinking of this bowden extruder as a backup, since this has the motor drive the Bondtech gears directly, more assurance the dual gears will fit. But this won't be direct-drive:
https://www.printables.
------
Matterhackers site can sort toolhead parts by filament. At least, it has the make/model info to chase down further google-ing:
https://www.matterhacke
The main challenge is finding/designing a toolhead adapter to fit your printer, with a matching printer config change-list for offsets, feed steps, PID, thermistor, etc. But at least there's a list of supported hotends for DIY (see below).
The Sprite Pro is Creality's latest-not-the-greatest direct-drive has a 2.85mm version. There have been issues with this model:
https://www.amazon.com/Creality-O...B0C4HBWHRM
DIY (unverified total solution)
The Voron M4 was originally a Bowden extruder, I think, but this one makes it a decent direct-drive mount for Ender 3:
https://www.thingiverse
... then replace one of the halves with this improved filament channel:
https://www.printables.
.. and then the trick is if the Bondtech 2.85 gear works in the M4:
https://www.3djake.com/bondtech/d...kit-285-mm
Just need to drill the printed part's filament path a bit (before installing the Bondtech gears). Not sure this is the right clearance size (some examples):
https://www.amazon.com/s?k=B09XVJ...34
https://www.amazon.com/s?k=B099JMQZH5&crid=1CWKU1GEGXW18&sprefix=b099jmqzh5%2Caps%2C132&ref=nb_sb_no... [amazon.com]
There are a few (1.75mm) M4 parts kits out there. This one has a steel main pulley. I have this, it's a decent kit:
https://www.amazon.com/s?k=B0BML8PDXK&i=industrial&crid=1OV1CSAT80719&sprefix=b0bml8pdxk%2Cindustria... [amazon.com]
Pancake motor (H-rated temp), or just use the old stepper:
https://www.amazon.com/s?k=B0B93P...nb
If it all fits, the advantage is a bolt-on, low-cost, high-ratio (finer feed control of the larger filament) gearing, with one of the best dual-gear sets and super-short bowden path to your choice of hotend.
Probably a good thing with all the filament I've been collecting.
Sign up for a Slickdeals account to remove this ad.
Matterhackers site can sort toolhead parts by filament. At least, it has the make/model info to chase down further google-ing:
https://www.matterhacke
The main challenge is finding/designing a toolhead adapter to fit your printer, with a matching printer config change-list for offsets, feed steps, PID, thermistor, etc. But at least there's a list of supported hotends for DIY (see below).
The Sprite Pro is Creality's latest-not-the-greatest direct-drive has a 2.85mm version. There have been issues with this model:
https://www.amazon.com/Creality-O...B0C4HBWHRM
DIY (unverified total solution)
The Voron M4 was originally a Bowden extruder, I think, but this one makes it a decent direct-drive mount for Ender 3:
https://www.thingiverse
... then replace one of the halves with this improved filament channel:
https://www.printables.
.. and then the trick is if the Bondtech 2.85 gear works in the M4:
https://www.3djake.com/bondtech/d...kit-285-mm
Just need to drill the printed part's filament path a bit (before installing the Bondtech gears). Not sure this is the right clearance size (some examples):
https://www.amazon.com/s?k=B09XVJ...34
https://www.amazon.com/s?k=B099JMQZH5&crid=1CWKU1GEGXW18&sprefix=b099jmqzh5%2Caps%2C132&ref=nb_sb_no... [amazon.com]
There are a few (1.75mm) M4 parts kits out there. This one has a steel main pulley. I have this, it's a decent kit:
https://www.amazon.com/s?k=B0BML8PDXK&i=industrial&crid=1OV1CSAT80719&sprefix=b0bml8pdxk%2Cindustria... [amazon.com]
Pancake motor (H-rated temp), or just use the old stepper:
https://www.amazon.com/LDO-Motors-NEMA14-Pancake-LDO-36STH20-1004AHG/dp/B0B9HLKP24/ref=sr_1_1?crid=1DHHQ8ME0Q6K2&keywords=LDO-36STH20-1004AHG&qid=1692209902&s=industrial&sprefix=ldo-36sth20-1004ahg%2Cindustrial%2C141&sr=1-1
https://www.amazon.com/s?k=B0B93PNYCP&i=industrial&crid=2PW0DVJNE0IQU&sprefix=b0b93pnycp%2Cindustrial%2C478&ref=nb_sb_noss [amazon.com]
If it all fits, the advantage is a bolt-on, low-cost, high-ratio (finer feed control of the larger filament) gearing, with one of the best dual-gear sets and super-short bowden path to your choice of hotend.
I'd rep you but SD is broken for me at the moment. ☹
I'd rep you but SD is broken for me at the moment. ☹
https://www.printedsoli
