Suryasis 12K Views
Mar 20, 2024 4:51 AM

Minisforum MS-01 Mini Server barebone: i5-12600H, 2xDDR5, 1xM.2/U2, 2xM.222110, 2x10G, 2x 2.5G Lan, PCIe x16 @ $429 + F/S

$429

$549

21% off
Minisforum
Visit Minisforum

Why are you downvoting this deal?

Good Deal?
26Comments
Save
Share
Deal Details
Minisforum is offering MS-01 Mini Server/Workstation Barebone with Core i5-12600H [minisforum.com] @ $429 with $10 off coupon code MINISFORUM10. Shipping is free.

Spec:
  • Core i5-12600H (4P+8E)/16T CPU (4.5 GHz Turbo, 18MB Cache, Intel vPro® Enterprise)
  • Intel Iris Xe Graphics (80 EU)
  • 2x DDR5-5200 SODIMM (64GB Max)

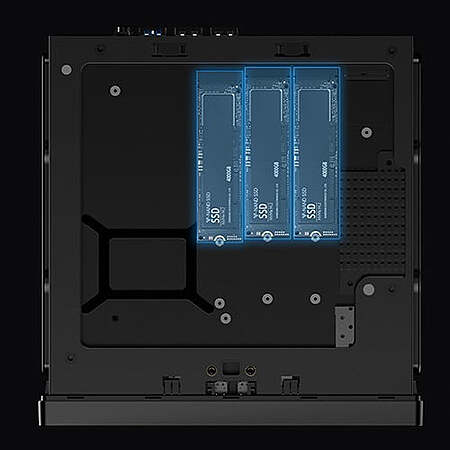

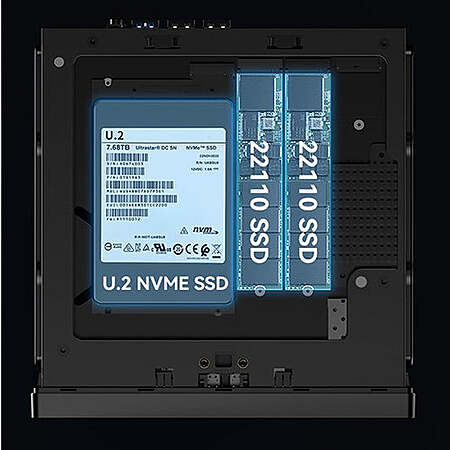

  • 1x M.2 2280 PCIe Gen 4x4 (Alt U2 Enterprise SSD support)
  • 1x M.2 2280/22110 PCIe Gen 3 x4 NVMe
  • 1x M.2 2280/22110 PCIe Gen 3 x2 NVMe
  • 1x M.2 2230 Slot (Populated with Network Card)

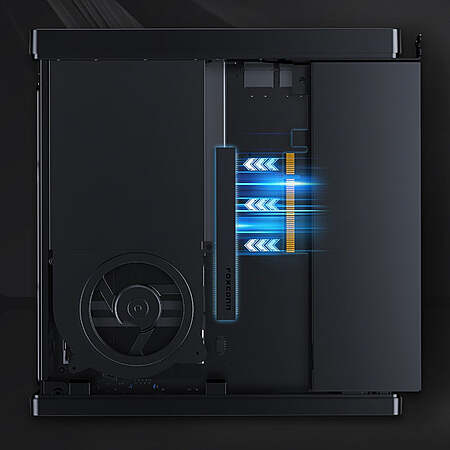

  • 1x PCIe 4.0 x16 slot (Half-height, single-slot, supports up to PCIe 4.0 x8 speed, 70W TDP)
  • Wi-Fi 6 2x2 + Bluetooth 5.2
  • Ports:

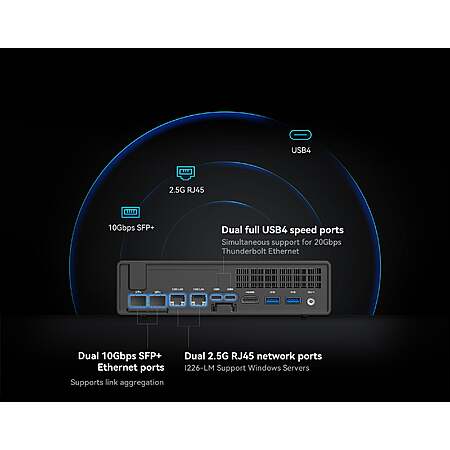

    • 2x 10 Gbps SFP+ Lan (Intel X710 Dual Port NIC Chip)
    • 2x 2.5 Gbps Rj45
    • 1x HDMI 2.0 (4K@60Hz)

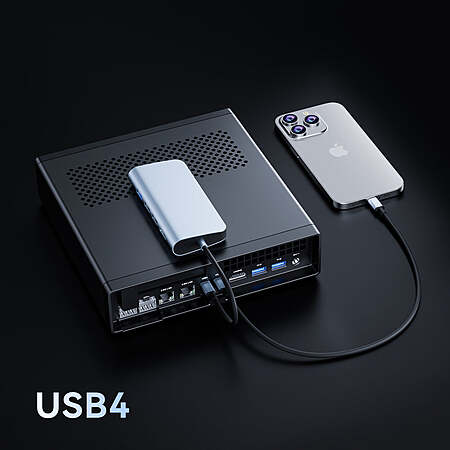

    • 2x USB4 Type-C (DisplayPort 1.4a, 40 Gbps, supports 20G Thunderbolt Ethernet)
    • 2x USB 3.2 Gen2 Type-A ports
    • 2x USB 3.2 Gen1 Type-A ports
    • 2x x USB 2.0 Gen1 Type-A ports
    • 1x 3.5mm Audio Combo Jack
Package Contents:
  • 1x MS-01 main unit
  • 1x Power adapter
  • 1x Power cable
  • 1x U.2 conversion plate
  • 1x SSD heat sink
  • 1x Mounting screw
  • 1x HDMI cable
  • 1x User's Manual
Community Notes
About the Poster
Deal Details
Community Notes
About the Poster
Minisforum is offering MS-01 Mini Server/Workstation Barebone with Core i5-12600H [minisforum.com] @ $429 with $10 off coupon code MINISFORUM10. Shipping is free.

Spec:
  • Core i5-12600H (4P+8E)/16T CPU (4.5 GHz Turbo, 18MB Cache, Intel vPro® Enterprise)
  • Intel Iris Xe Graphics (80 EU)
  • 2x DDR5-5200 SODIMM (64GB Max)
  • 1x M.2 2280 PCIe Gen 4x4 (Alt U2 Enterprise SSD support)
  • 1x M.2 2280/22110 PCIe Gen 3 x4 NVMe
  • 1x M.2 2280/22110 PCIe Gen 3 x2 NVMe
  • 1x M.2 2230 Slot (Populated with Network Card)
  • 1x PCIe 4.0 x16 slot (Half-height, single-slot, supports up to PCIe 4.0 x8 speed, 70W TDP)
  • Wi-Fi 6 2x2 + Bluetooth 5.2
  • Ports:
    • 2x 10 Gbps SFP+ Lan (Intel X710 Dual Port NIC Chip)
    • 2x 2.5 Gbps Rj45
    • 1x HDMI 2.0 (4K@60Hz)
    • 2x USB4 Type-C (DisplayPort 1.4a, 40 Gbps, supports 20G Thunderbolt Ethernet)
    • 2x USB 3.2 Gen2 Type-A ports
    • 2x USB 3.2 Gen1 Type-A ports
    • 2x x USB 2.0 Gen1 Type-A ports
    • 1x 3.5mm Audio Combo Jack
Package Contents:
  • 1x MS-01 main unit
  • 1x Power adapter
  • 1x Power cable
  • 1x U.2 conversion plate
  • 1x SSD heat sink
  • 1x Mounting screw
  • 1x HDMI cable
  • 1x User's Manual

Community Voting

Deal Score
+11
Good Deal
Bad Deal

Why are you downvoting this deal?

Visit Minisforum

Join The Conversation

Share your experience with the Slickdeals community

Share information with the community. Please follow our Community Guidelines and be kind!

26 Comments

Sign up for a Slickdeals account to remove this ad.

Mar 20, 2024 2:44 PM
1.5K Comments
Joined Nov 2017
oharag1Mar 20, 2024 2:44 PM
1.5K Comments
The i9 is also on sale. May buy this for home Firewall/VPN/NAS ect - a catch all server.
Mar 20, 2024 3:08 PM
256 Comments
Joined Aug 2010
gboy13Mar 20, 2024 3:08 PM
256 Comments
Will this transcode for Plex well or do you need the K version of the i5?
1
Mar 20, 2024 3:09 PM
59 Comments
Joined Jun 2014
eyecarezeroMar 20, 2024 3:09 PM
59 Comments
Quote from gboy13 View quoted comment :
Will this transcode for Plex well or do you need the K version of the i5?
It will transcode just fine. Just make sure you have a plex pass so you can turn on hardware transcoding.
Mar 20, 2024 3:22 PM
1.5K Comments
Joined Nov 2017
oharag1Mar 20, 2024 3:22 PM
1.5K Comments
Quote from gboy13 View quoted comment :
Will this transcode for Plex well or do you need the K version of the i5?
Chips have Intel® Iris® Xe Graphics integrated. Supposedly fast enough to transcode 8K video, Is Iris it better than AMD 780M integrated - no way.
5
Mar 20, 2024 3:35 PM
1.9K Comments
Joined Mar 2008
paulhentaMar 20, 2024 3:35 PM
1.9K Comments
Quote from oharag1 View quoted comment :
Chips have Intel® Iris® Xe Graphics integrated. Supposedly fast enough to transcode 8K video, Is Iris it better than AMD 780M integrated - no way.
You never heard of quicksync apparently
3
Mar 20, 2024 4:02 PM
233 Comments
Joined Apr 2018
LintegrasMar 20, 2024 4:02 PM
233 Comments
Maybe instead of a passively disparaging remark, you could provide context and education so they, and others, might learn.

Here's some comparison information, but it seems geared towards 3d rendering performance, opposed to encoding performance. Hopefully someone helpful can come along and shine more or better light on the subject.

https://www.notebookcheck.net/Rad...598.0.html

https://technical.city/en/video/I...adeon-780M
Original Poster
Pro
Expert
This user is an Expert in Computers
Mar 20, 2024 4:09 PM
20.7K Comments
Joined Jul 2015
SuryasisMar 20, 2024 4:09 PM
Original Poster
Pro
Expert
This user is an Expert in Computers
20.7K Comments

Our community has rated this post as helpful. If you agree, why not thank

Quote from oharag1 View quoted comment :
Chips have Intel® Iris® Xe Graphics integrated. Supposedly fast enough to transcode 8K video, Is Iris it better than AMD 780M integrated - no way.
Rasterization performance and hardware encoding/decoding are two different aspects of any GPU, integrated or dedicated. Radeon 780M is no doubt, is faster than Iris Xe, both 80 EU and the 96 EU version, by a good margin in Rasterization/gaming performance but the Hardware Encoding/Decoding unit in Intel Graphics, is superior and has better driver support and integration with most commonly used apps. That's why when you're planning to use the GPU for Multimedia / Streeaming purpose, instead of raw gaming performance, look for the hardware encoding and decoding support, especially with the apps you're planning to use.
2

Sign up for a Slickdeals account to remove this ad.

Mar 20, 2024 4:47 PM
551 Comments
Joined Sep 2007
mannyvMar 20, 2024 4:47 PM
551 Comments
This looks like a killer little box. Wish the had something with 128gb of ram or more to replace my esxi machine.
Mar 20, 2024 4:57 PM
294 Comments
Joined Sep 2006
Sir MeiliMar 20, 2024 4:57 PM
294 Comments
Quote from mannyv View quoted comment :
This looks like a killer little box. Wish the had something with 128gb of ram or more to replace my esxi machine.
it is been shown that you can at least get to 96GB instead of the advertised 64GB if that helps.
Mar 20, 2024 5:12 PM
850 Comments
Joined Nov 2014
warre2mMar 20, 2024 5:12 PM
850 Comments
Quote from oharag1 View quoted comment :
The i9 is also on sale. May buy this for home Firewall/VPN/NAS ect - a catch all server.
Considering the same but what software would you go with and would it be reliable to share this many hardware resources? Proxmox?
Mar 20, 2024 5:20 PM
1 Comments
Joined Mar 2024
JollyDolphin2792Mar 20, 2024 5:20 PM
1 Comments
So if i add a PCIE M.2 expansion card (4x are available) and use one internal for OS and apps, then RAID the up to 6 remaining SSDs, how well would this make an All-Flash NAS compared to the Asustor FS6706T?

I found the SABRENT 4-Drive NVMe SSD to PCIe 4.0 X 16 Adapter Card with Active Cooling [EC-P4BF] for $99. Hopefully it fits etc.

This plus the PC plus an OS ssd for < $600 vs the FS6706T for $499 gives you faster cpu, more dedicated app space, USB4 expansion, and throws in 2 optical 10gbe ports.
Plus you can use it as a windows pc or server easier.

What do you think?
Mar 20, 2024 6:10 PM
142 Comments
Joined May 2019
FrankP3Mar 20, 2024 6:10 PM
142 Comments
Quote from JollyDolphin2792 View quoted comment :
So if i add a PCIE M.2 expansion card (4x are available) and use one internal for OS and apps, then RAID the up to 6 remaining SSDs, how well would this make an All-Flash NAS compared to the Asustor FS6706T?

I found the SABRENT 4-Drive NVMe SSD to PCIe 4.0 X 16 Adapter Card with Active Cooling [EC-P4BF] for $99. Hopefully it fits etc.

This plus the PC plus an OS ssd for < $600 vs the FS6706T for $499 gives you faster cpu, more dedicated app space, USB4 expansion, and throws in 2 optical 10gbe ports.
Plus you can use it as a windows pc or server easier.

What do you think?
Check servethehome discussion on this box. There are three M2 slots, one of which can also be U2. There is a wifi slot you migh be able to add a 4th. There is also an expansion slot, you could add nvme x2 on a card with bifrucation, there are example cards in the servethehome thread. AN ISSUE, when using the 3 M2 slots, is that the third slot is only a pcie x2 slot. So, much slower than full pcie. In a raid, that means all the drives will be slowed to that speed. Now that still might be faster than your network speed, most home wifi are not fast. If you are using the 10gb nic you might be constrained. Depends on your drives and bandwidth. Certainly will slow things down if you are using the machine directly (where you could see the full nmve speeds), but, maybe not so much if just a nas (where the speed of the network is usually the slowdown). That said, with the 2 regular nmve + 2 on an expansion card + 10gb internal nic = about the fastest 4 drive mini nas right now. Of course, you could just grab an $800 Intel U2 drive at 16Tb and have full enterprise power shutoff protection and speed, without the raid benefits. Smilie
1
Mar 20, 2024 6:26 PM
4 Comments
Joined Nov 2015
JakubgMar 20, 2024 6:26 PM
4 Comments
Quote from JollyDolphin2792 View quoted comment :
So if i add a PCIE M.2 expansion card (4x are available) and use one internal for OS and apps, then RAID the up to 6 remaining SSDs, how well would this make an All-Flash NAS compared to the Asustor FS6706T?

I found the SABRENT 4-Drive NVMe SSD to PCIe 4.0 X 16 Adapter Card with Active Cooling [EC-P4BF] for $99. Hopefully it fits etc.

This plus the PC plus an OS ssd for < $600 vs the FS6706T for $499 gives you faster cpu, more dedicated app space, USB4 expansion, and throws in 2 optical 10gbe ports.
Plus you can use it as a windows pc or server easier.

What do you think?
I would do a QNAP JBOD PCI adapter and Z-raid the drives.
Mar 20, 2024 6:43 PM
1.1K Comments
Joined Jun 2006
zyberwoofMar 20, 2024 6:43 PM
1.1K Comments
Quote from oharag1 View quoted comment :
Chips have Intel® Iris® Xe Graphics integrated. Supposedly fast enough to transcode 8K video, Is Iris it better than AMD 780M integrated - no way.
From most everything I've seen, there is very little support for AMD GPU's in the selfhosted world. Although I'm sure the AMD iGPU is way more powerful than Intel's, Intel's has the benefit of strong community support for Quicksync. This lets machines do real time video transcoding without breaking a sweat.

I'm personally a bigger fan of AMD's CPUs than Intel's. But their iGPUs seem wasted in the home server space.

Sign up for a Slickdeals account to remove this ad.

Mar 20, 2024 7:46 PM
570 Comments
Joined May 2015
FeiyeungSMar 20, 2024 7:46 PM
570 Comments
Any info about its idle power consumption?
