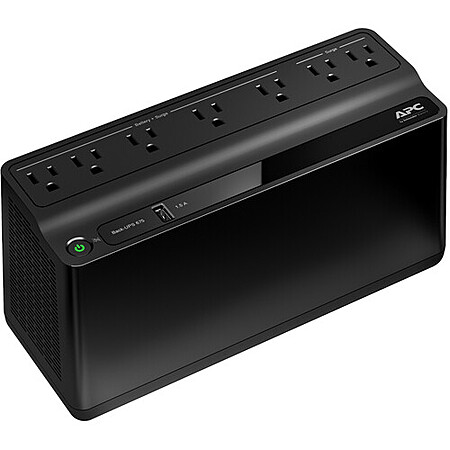

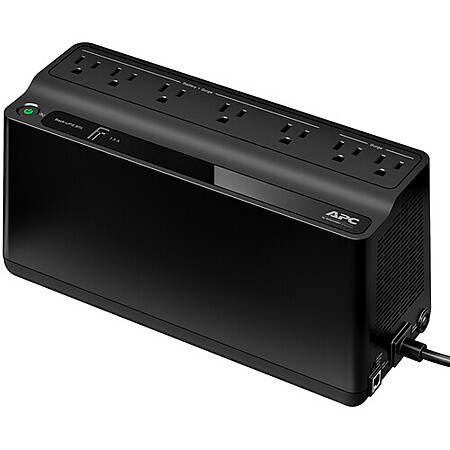

| Product Description: | Safely shut down computer systems and guard connected equipment from surges with the Back-UPS BE670M1 Surge Protector & Battery Backup from APC. The UPS is armed with a total of seven NEMA 5-15R outlets, five of which provide surge protection and backup power, and two of which only provide surge protection. In the event of a power outage, the UPS comes equipped with an internal battery that lasts for up to 2.5 minutes at full load, up to 10.25 minutes at half load, and may be recharged in 10 hours. For electrical spikes, the UPS has a 490J surge energy rating. Other notable connections include a 1.5A USB-A port for device charging, a USB-B port for data connections, and 5' NEMA 5-15P power cable. It operates using 120V at 50/60 Hz and outputs 360W/675 VA. |
| Product SKU: | 1733781 |
| 7_x_total_nema_5-15r_outlets: | 5 x Battery Backup & Surge Outlets |
| battery_capacity: | (66 VaH) |
| box_dimensions_lxwxh: | 14.4 x 8 x 7.5" |
| cable_length: | 5' / 1.5 m |
| cells: | 1 |
| certifications: | CEC, cTUVus, NOM, REACH, RoHS |
| chemistry: | Lead-Acid |
| communications_io: | USB via Type-B |
| dimensions_w_x_h_x_d: | 10.79 x 5.47 x 4.13" / 27.41 x 13.89 x 10.49 cm |
| full-load_runtime: | 2.5 Minutes |
| half-load_runtime: | 10.25 Minutes |
| input_frequency: | 50/60 Hz ± 3 Hz (Auto Sensing) |
| load_capacity: | 675 VA |
| maximum_wattage: | 360 W |
| noise_filtering: | 5% |
| noise_level: | 35 dBA |
| nominal_input_voltage: | 120 VAC |
| nominal_output_voltage: | 120 VAC |
| operating_humidity: | 0 to 90% |
| operating_temperature: | 32 to 104°F / 0 to 40°C |
| output_360w_675_va: | Input: 120 VAC @ 50/60 Hz ± 3 Hz |
| output_frequency: | 50/60 Hz ± 3 Hz |
| package_weight: | 8.66 lb |
| plug_type: | NEMA 5-15P |
| protected_outlets: | 5x NEMA 5-15R (Battery and Surge)2x NEMA 5-15R (Surge Only) |
| rackmount_size: | No |
| recharge_time: | 10 Hours |
| replacement_battery: | APCRBC154 |
| storage_altitude: | 0 to 50,000' / 0.0 to 15,240 m |
| storage_humidity: | 0 to 95% |
| storage_temperature: | 5 to 113°F / -15 to 45°C |
| surge_protection: | 490 Joules |
| thermal_dissipation: | 16 BTU/Hour |
| topology: | Standby |
| total_outlets: | 7x NEMA 5-15R (3 Transformer-Sized) |
| transfer_time: | 6 to 10 ms |
| usb_charging_ports: | 1x USB-A (1.5 A) |
| waveform: | Simulated Sine Wave |
| weight: | 7.69 lb / 3.49 kg |
