expired Posted by CoralReward482 • Jun 1, 2023
expired Posted by CoralReward482 • Jun 1, 2023

Rain Bird Easy to Install In-Ground Automatic Sprinkler System

+ Free Shipping

$67

$134

50% off
Home Depot
64 Comments 59,865 Views
Visit Home Depot
Good Deal
Save
Share
Deal Details
Home Depot has Rain Bird Easy to Install In-Ground Automatic Sprinkler System on sale for $66.95. Shipping is free.

Thanks to community member CoralReward482 for sharing this deal.

Features:
  • Project involves digging to bury sprinklers and trenching the lawn to bury tubing using a spade shovel or half-moon edger
  • Sprinklers retract into the lawn for a clean, uncluttered appearance and easier mowing
  • Covers medium size lawn areas from 1000 - 3000 sq. ft., with average residential water pressure and flow
  • Recommended minimum water flow: 6 GPM
  • Working temperature: 32 degree Fahrenheit (min) - 110 degree Fahrenheit (Max). timer should not be exposed to below freezing temperatures (32 degree Fahrenheit)
  • Sprinkler pattern (adjustable): 40 to 360 degrees
  • Eliminates constant hassle of hose and sprinkler adjustments
  • Waters your lawn automatically the whole season

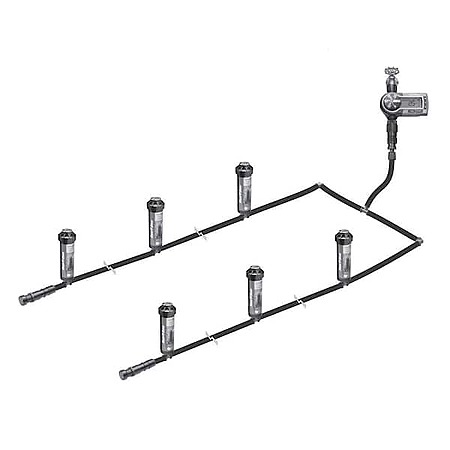

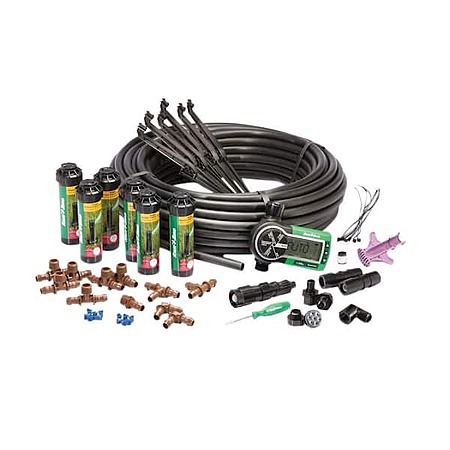

  • Includes:
    • 125-ft of Distribution Tubing
    • Fittings
    • 6 professional grade high-efficiency 32SA pop-up rotary sprinklers

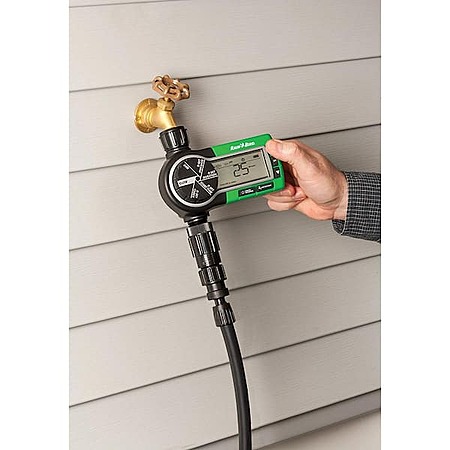

    • Automatic 1ZEHTMR hose-end timer

Editor's Notes

Written by qwikwit | Staff
  • This price is $13.38 lower than this popular deal from a few days ago.
  • This product is rated 4.1 out of 5 stars based on 630 customer reviews.
  • See the forum thread for deal discussion.

Original Post

Written by CoralReward482
Product Info
Community Notes
About the Poster
Deal Details
Product Info
Community Notes
About the Poster
Home Depot has Rain Bird Easy to Install In-Ground Automatic Sprinkler System on sale for $66.95. Shipping is free.

Thanks to community member CoralReward482 for sharing this deal.

Features:
  • Project involves digging to bury sprinklers and trenching the lawn to bury tubing using a spade shovel or half-moon edger
  • Sprinklers retract into the lawn for a clean, uncluttered appearance and easier mowing
  • Covers medium size lawn areas from 1000 - 3000 sq. ft., with average residential water pressure and flow
  • Recommended minimum water flow: 6 GPM
  • Working temperature: 32 degree Fahrenheit (min) - 110 degree Fahrenheit (Max). timer should not be exposed to below freezing temperatures (32 degree Fahrenheit)
  • Sprinkler pattern (adjustable): 40 to 360 degrees
  • Eliminates constant hassle of hose and sprinkler adjustments
  • Waters your lawn automatically the whole season
  • Includes:
    • 125-ft of Distribution Tubing
    • Fittings
    • 6 professional grade high-efficiency 32SA pop-up rotary sprinklers
    • Automatic 1ZEHTMR hose-end timer

Editor's Notes

Written by qwikwit | Staff
  • This price is $13.38 lower than this popular deal from a few days ago.
  • This product is rated 4.1 out of 5 stars based on 630 customer reviews.
  • See the forum thread for deal discussion.

Original Post

Written by CoralReward482

Community Voting

Deal Score
+68
Good Deal
Visit Home Depot

Leave a Comment

Unregistered (You)

Top Comments

enz1ey
163 Posts
55 Reputation
This is a great beginner system for the price, but running a single zone with all six sprinklers isn't a very efficient use of water. I believe the minimum flow rate for these nozzles is over 2GPM, so if you're using all six heads, you'll need at least 12GPM from your faucet, ideally around 18GPM to get the full radius from them.

I ran this set all last year and even added a 7th nozzle for a small strip of grass. Adding the 7th nozzle caused the pressure in my system to drop enough that some of the heads would intermittently fail to pop up.

That said, it is an easy system to install and use, the drains allow you to skip any complicated winterization procedures beyond just shutting your water off (and I disconnected the hose), and the poly tube makes it easy to set the system up above ground and test placement before digging. I will say there probably won't be enough barbed fittings or tubing for most people's application, and they can be tough to find.
qc1986
51 Posts
46 Reputation
I have this system in my yard, going on 3 years now. I'll leave some tips and echoing some of the stuff previously mentioned.


1) You're going to need help. It's not fun to dig this thing by yourself. And call before you dig. This will take about half a day to dig. We didn't burry this very deep, 6 inches for the line and about 12 for the sprinkler heads. Use whatever tool you're comfortable with. We went with 6 inches because it was easier to cut the ground with a shovel and lay in the line. You're going to need to get pass roots and rocks which isn't fun if you dig deep. Burry the sprinkler flush with the ground, else your mower will hit it. Use rocks to stabilize, and cover with dirt. This is basically a heavy object expected to stand upright on a hose.

2) There's a reason why they limit this setup to 6 sprinklers. They're set at 1GPM on each of those heads. Most homes will have 8-9 GPM rating. Adding one more is pushing it.

2a) The 32SA heads you buy at the store....MUCH MORE POWERFUL. I don't know why but I feel like these that come with the kit has less distant than the store bought one. I checked, same model and everything but once you replace the head, you'll see.

3) Definitely add drainers. They included 2 (?) in there but they can be bought at home Depot for about $4 a piece. I don't need to blow out my line at the end of the season with multiple drains.

4) Add a smart hose timer. You'll thank me later. Recommend Orbit BHyve. They're finicky in the app but they're dependable as in it'll last season after season.

5) If you need an Y splitter at your faucet from the house, DO NOT buy those common brass ones. They'll reduce your rate by about 1GPM. The backflow preventer on this already reduced it by half a gallon. Instead buy the Melnor splitters. Bigger diameters and won't cause reduction.

6) DO add a water hammer. The noise once this thing shuts off sounds like someone used a sledge hammer on the side of your house.

7) This system is meant for a small yard. About 3000 SQ ft. You try to water this with a 6000 sq ft yard like I did, you'll end up with redundancy and inadequate watering in areas. My GPM is at 8 with everything setup. I installed an extra head and regret it after one season. It was hit or miss; sometimes the sprinkler head would pop up and other times it wouldn't. Added to that, certain areas got more water and other areas got very little. It'll "cover" but not cover equally. I split my backyard up into 2 zones and was much happier.

8) $66 is a steal. But you can do it cheaper and better once you figure out what parts you need. This is but a kit. If you wait until end of season, you can buy parts for much cheaper.

If you have any questions, just leave a comment..I'll check back on this to answer.

Just fyi, this has been an expensive hobby to continue. Did the back yard, and then had to split it into two zones. Then did the front yard. Added 3 smart timers. Then did the two gardens. Added timers on that. Then the grass seeds. Smh.
Souka
1247 Posts
126 Reputation
I really recommend a couple things if putting a sprinkler system in.

1: Self draining. Basically when pressure is low, the lines will mostly empty. This, if done properly, will remove need to winterize the lines.

2: Rent a trenching saw from local big box store and bury lines deep. This will allow you to fill, if needed, with soil that is free of rocks. Also burying lines deeper protects against freezing and accidental breakage when digging in the yard.
I have clay/rocky soil.....and a lot of trees... doing by hand would be a nightmare!

3: Get utility to come mark area you're planning to dig, especially if using a trenching saw.

4. Get a digital wi-fi controller... they're often being sold on SD for $75-150.... %100 worth it when making sprinkler adjustments or needing to customize watering (like when re-seeding).

My lines are buried 1.5-2' deep... They're not self draining, but I've NEVER winterized. Only had one line break, but it was due to a tree root. My manifold is inside an attached garage... I just drain it and shut off water in winter.


My $.02! I'm not a professional, but have a happy, healthy lawn that I'm proud of.

63 Comments

Sign up for a Slickdeals account to remove this ad.

Jun 1, 2023
745 Posts
Joined Oct 2013
Jun 1, 2023
DanweiD
Jun 1, 2023
745 Posts
Are those regular heads? I need 4 heads replaced for my system and for that price I don't mind a free timer.
Jun 1, 2023
163 Posts
Joined Mar 2018
Jun 1, 2023
enz1ey
Jun 1, 2023
163 Posts

Our community has rated this post as helpful. If you agree, why not thank enz1ey

This is a great beginner system for the price, but running a single zone with all six sprinklers isn't a very efficient use of water. I believe the minimum flow rate for these nozzles is over 2GPM, so if you're using all six heads, you'll need at least 12GPM from your faucet, ideally around 18GPM to get the full radius from them.

I ran this set all last year and even added a 7th nozzle for a small strip of grass. Adding the 7th nozzle caused the pressure in my system to drop enough that some of the heads would intermittently fail to pop up.

That said, it is an easy system to install and use, the drains allow you to skip any complicated winterization procedures beyond just shutting your water off (and I disconnected the hose), and the poly tube makes it easy to set the system up above ground and test placement before digging. I will say there probably won't be enough barbed fittings or tubing for most people's application, and they can be tough to find.
1
Jun 1, 2023
163 Posts
Joined Mar 2018
Jun 1, 2023
enz1ey
Jun 1, 2023
163 Posts
Quote from DanweiD :
Are those regular heads? I need 4 heads replaced for my system and for that price I don't mind a free timer.
They're gear-driven rotor heads, so they won't work with regular spray or rotary nozzles.
Jun 1, 2023
745 Posts
Joined Oct 2013
Jun 1, 2023
DanweiD
Jun 1, 2023
745 Posts
Quote from enz1ey :
They're gear-driven rotor heads, so they won't work with regular spray or rotary nozzles.
Understood, I have Hunter PGP now, looks close enough
Jun 1, 2023
73 Posts
Joined Apr 2012
Jun 1, 2023
Pd_River
Jun 1, 2023
73 Posts
Thank you! I almost picked this up for $150 last week.
Pro
Jun 1, 2023
5,465 Posts
Joined Oct 2007
Jun 1, 2023
dealboy12
Pro
Jun 1, 2023
5,465 Posts
Quote from enz1ey :
This is a great beginner system for the price, but running a single zone with all six sprinklers isn't a very efficient use of water. I believe the minimum flow rate for these nozzles is over 2GPM, so if you're using all six heads, you'll need at least 12GPM from your faucet, ideally around 18GPM to get the full radius from them.

I ran this set all last year and even added a 7th nozzle for a small strip of grass. Adding the 7th nozzle caused the pressure in my system to drop enough that some of the heads would intermittently fail to pop up.

That said, it is an easy system to install and use, the drains allow you to skip any complicated winterization procedures beyond just shutting your water off (and I disconnected the hose), and the poly tube makes it easy to set the system up above ground and test placement before digging. I will say there probably won't be enough barbed fittings or tubing for most people's application, and they can be tough to find.
About how much square footage of grass are you covering with this system? I have a smaller front yard so I'm wondering if I need all the heads.

Are these heads good enough as a more advanced system later if I want to upgrade the controller and add more/separate zones later and don't want to redo this zone?
Jun 1, 2023
163 Posts
Joined Mar 2018
Jun 1, 2023
enz1ey
Jun 1, 2023
163 Posts
Quote from dealboy12 :
About how much square footage of grass are you covering with this system? I have a smaller front yard so I'm wondering if I need all the heads.

Are these heads good enough as a more advanced system later if I want to upgrade the controller and add more/separate zones later and don't want to redo this zone?
I covered roughly 2500 square feet, but with little overlap between sprinkler heads so I would say that is probably the upper limit of this kit.

You can certainly keep these and then upgrade the sprinkler bodies and/or nozzles quite easily down the road. The only knock I'd have on this is the tubing size, this kit uses 1/2" poly tube where you'd typically want something like 3/4" to supply a higher volume of water to so many sprinkler heads. It's not a huge deal, however, if your area is on the smaller side. Basically in the future if/when you upgrade/add components, you will just need to adapt the 1/2" poly tube to your new valve/manifold which will be controlled by your new controller.

I am actually in the beginning stages of doing this myself. I have made some landscape changes to my yard, so I am leaving a few of these originals in place, and in other areas I will be replacing the sprinkler body which is as easy as digging up the old body, unscrewing it, and screwing a new one in place then burying it. These are decent sprinkler bodies though, so the only reason to replace them is if you want to change to a spray valve instead of a rotor.

Sign up for a Slickdeals account to remove this ad.

Jun 1, 2023
76 Posts
Joined Sep 2022
Jun 1, 2023
CoolName536
Jun 1, 2023
76 Posts
These are fine, but if you're planning to run it from your water hose spigot better just putting some hammer sprinklers daisy chained into your flower beds.
Jun 1, 2023
1 Posts
Joined Jan 2023
Jun 1, 2023
ChangeUsernameHere
Jun 1, 2023
1 Posts
I have unusually high water pressure, which I don't like to say out loud, at 110-115psi. Using it to my advantage, I've adapted all my fixtures and appliances with water hammers, etc. so I won't have to worry about damage.

With a system like this, I can't find any documentation on the psi limit of the timer and fittings, really the timer that I'm concerned about. I'm interested in purchasing, but would hate to go through the whole process too have trouble soon after. Any knowledge there?
Jun 1, 2023
1,247 Posts
Joined Sep 2011
Jun 1, 2023
Souka
Jun 1, 2023
1,247 Posts
I really recommend a couple things if putting a sprinkler system in.

1: Self draining. Basically when pressure is low, the lines will mostly empty. This, if done properly, will remove need to winterize the lines.

2: Rent a trenching saw from local big box store and bury lines deep. This will allow you to fill, if needed, with soil that is free of rocks. Also burying lines deeper protects against freezing and accidental breakage when digging in the yard.
I have clay/rocky soil.....and a lot of trees... doing by hand would be a nightmare!

3: Get utility to come mark area you're planning to dig, especially if using a trenching saw.

4. Get a digital wi-fi controller... they're often being sold on SD for $75-150.... %100 worth it when making sprinkler adjustments or needing to customize watering (like when re-seeding).

My lines are buried 1.5-2' deep... They're not self draining, but I've NEVER winterized. Only had one line break, but it was due to a tree root. My manifold is inside an attached garage... I just drain it and shut off water in winter.


My $.02! I'm not a professional, but have a happy, healthy lawn that I'm proud of.
Jun 1, 2023
141 Posts
Joined Jun 2012
Jun 1, 2023
vtmonkey8
Jun 1, 2023
141 Posts
Quote from ChangeUsernameHere :
I have unusually high water pressure, which I don't like to say out loud, at 110-115psi. Using it to my advantage, I've adapted all my fixtures and appliances with water hammers, etc. so I won't have to worry about damage.

With a system like this, I can't find any documentation on the psi limit of the timer and fittings, really the timer that I'm concerned about. I'm interested in purchasing, but would hate to go through the whole process too have trouble soon after. Any knowledge there?
https://www.homedepot.com/p/Rain-.../203209335

Working water pressure: 15 psi (minimum) - 90 psi (maximum)
I would recommend install a pressure reducing valve.
Jun 1, 2023
1,663 Posts
Joined Dec 2008
Jun 1, 2023
mrayray09
Jun 1, 2023
1,663 Posts
Quote from Souka :
I really recommend a couple things if putting a sprinkler system in.

1: Self draining. Basically when pressure is low, the lines will mostly empty. This, if done properly, will remove need to winterize the lines.

2: Rent a trenching saw from local big box store and bury lines deep. This will allow you to fill, if needed, with soil that is free of rocks. Also burying lines deeper protects against freezing and accidental breakage when digging in the yard.
I have clay/rocky soil.....and a lot of trees... doing by hand would be a nightmare!

3: Get utility to come mark area you're planning to dig, especially if using a trenching saw.

4. Get a digital wi-fi controller... they're often being sold on SD for $75-150.... %100 worth it when making sprinkler adjustments or needing to customize watering (like when re-seeding).

My lines are buried 1.5-2' deep... They're not self draining, but I've NEVER winterized. Only had one line break, but it was due to a tree root. My manifold is inside an attached garage... I just drain it and shut off water in winter.


My $.02! I'm not a professional, but have a happy, healthy lawn that I'm proud of.
My only comment would be to put these lines deeper than 2" where the head is so, when off, it is flat with the ground. If these are 4", you will probably want to be 5-6" down.
Jun 1, 2023
677 Posts
Joined May 2007
Jun 1, 2023
Conservative1
Jun 1, 2023
677 Posts
Quote from CoolName536 :
These are fine, but if you're planning to run it from your water hose spigot better just putting some hammer sprinklers daisy chained into your flower beds.
I did this, didn't bury hoses but still can. I used rotary heads.
Jun 1, 2023
2,156 Posts
Joined Jan 2008
Jun 1, 2023
jstutman
Jun 1, 2023
2,156 Posts
I need something to extend out my aerobatic septic system because right now it just sprays my fence. Will these work to extend out the existing line?

*bonus points if you could tell me what I need instead

Sign up for a Slickdeals account to remove this ad.

Jun 1, 2023
1,415 Posts
Joined Apr 2005
Jun 1, 2023
b7ed40a4-4ec6-42e7-9b71-f95382
Jun 1, 2023
1,415 Posts
What a waste of water.
2
