ECO-WORTHY [eco-worthy.com] has
ECO-WORTHY Bifacial 600W (3x 195W) 12V Monocrystalline Solar Panel Complete MPPT Kit (US-L02M195TM-MCWZ-3) for
$550 w/ code
Deal100 at checkout.
Shipping is free.

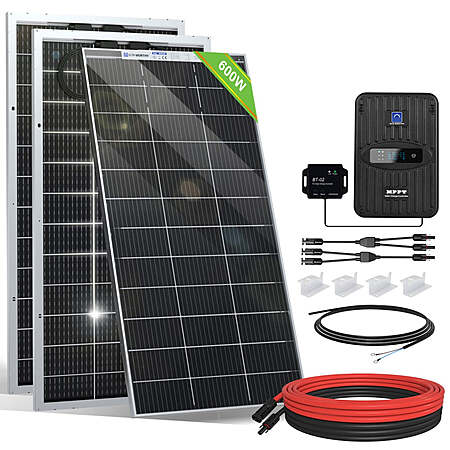

Includes:- Solar Panels: 3x Bifacial 195W Monocrystalline Solar Panels
- Solar Controller: 1x 40A MPPT Solar Controller
- Extension Cable: 1x 5M 12AWG Extension Cable with MC4 connectors
- Mounting Brackets: 3x Z Mounting Brackets
- Tray Cable: 1x 1.5M Tray Cable
Specs:
Bifacial 195W Monocrystalline Solar Panel
- Rated Power: 195W
- Solar Cell: Monocrystalline
- Maximum/Peak Voltage (Vmp): 19.8V
- Open Circuit Voltage (Voc): 23.7V
- Short circuit current: 10.5A
- Maximum current: 9.85A
- Output Tolerance: ±3%
- Temperate coefficient of Isc: (010+/-0.01) %/℃
- Temperate coefficient of Voc: -(0.38+/-0.01) %/℃
- Temperature range: -40℃~ +85℃
- Frame: Aluminum alloy frame
- Weight: 20.48 lbs.(9.29 kg)
- Size: 52.6x26.38x1.38in (1335*670*35mm)
40A MPPT Solar Charge Controller
- Battery voltage:12V/24V
- Max Solar Input Power:560/1120W
- Charging mode: MPPT
- Rated Load Current:20A
- Charge Efficiency (Peak):97%
- Self-Consumption:1~2W
- Battey Type:LiFePO4,AGM,Sealed,Gel,Flooded
- Size:220*148*64mm/8.7*5.8*2.5inch
- Max Charge current:40A Weight:1.5KG
- Max.PV Open-Circuit Voltage:<100V
