forum threadSuryasis posted Dec 21, 2024 02:29 AM
  1. Deal Image
Item 1 of 4
  1. Deal Image
  2. Deal Image
  3. Deal Image
  4. Deal Image
Item 1 of 4
forum threadSuryasis posted Dec 21, 2024 02:29 AM

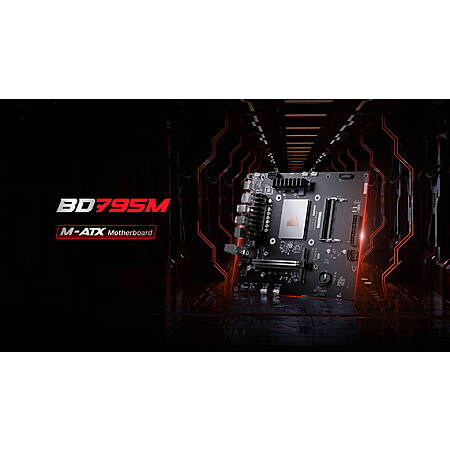

Minisforum BD795M MoDT M-ATX Motherboard Barebone /w Ryzen 7 7945HX, 2X DDR5, 2x M.2 Ne, 2x SAT III @ $389 + F/S

$389

$649

40% off
Minisforum
18 Comments 7,214 Views
Get Deal at Minisforum
Good Deal
Save
Share
Deal Details
Link: https://store.minisforum.com/prod...4502697205

Coupon: $90 off via DEC795M

Specs:
  • M-ATX Form Factor (240х220х1.6mm)
  • LGA1700 Based Air/Liquid CPU Cooler Supported
  • AMD Ryzen 9 7945HX 16C/32T 2.5 GHz (5.1 GHz Boost, 70MB Cache)
  • AMD Radeon 610M Integrated Graphics
  • Not included: RAM, SSD

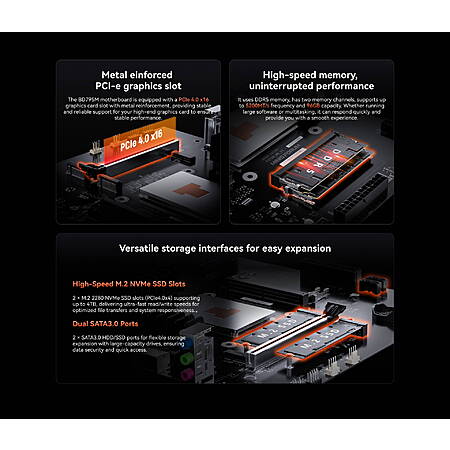

  • DDR5 Dual Channel (SODIMM Slots, up to 5200 MT/s, 96GB Max)
  • 2x M.2 2280 PCIe Gen 4.0x4 SSD Slots
  • 1x M.2 2230 Key E Slot for NIC
  • 2x SATA III Ports
  • 1x PCIe 4.0 X16 Slot for GPU (with Metal Fasteners）

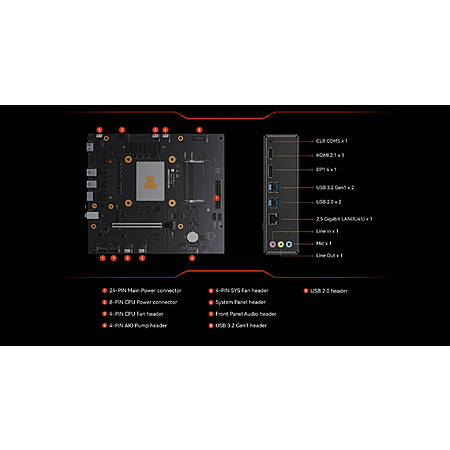

  • Ports:
    • 1x USB 3.2 Gen 2 Type-C (Alt DisplayPort 1.4)
    • 2x USB 3.2 Gen 1 Type-A
    • 2x USB 2.0 Type-A
    • 1x HDMI 2.1
    • 1x DisplayPort 1.4
    • 1x RJ-45 2.5G Ethernet
    • 1x Line Out
    • 1x Line In
    • 1x Mic In
  • FAN/Audio/USB Headers:
    • 1x 4-pin CPU Fan header
    • 2x 4-pin System Fan header
    • 1x Front Panel Audio Header
    • 1x System Panel Headers
    • 1x USB 3.2 Gen 1 Header
Community Notes
About the Poster
Deal Details
Community Notes
About the Poster
Link: https://store.minisforum.com/prod...4502697205

Coupon: $90 off via DEC795M

Specs:
  • M-ATX Form Factor (240х220х1.6mm)
  • LGA1700 Based Air/Liquid CPU Cooler Supported
  • AMD Ryzen 9 7945HX 16C/32T 2.5 GHz (5.1 GHz Boost, 70MB Cache)
  • AMD Radeon 610M Integrated Graphics
  • Not included: RAM, SSD
  • DDR5 Dual Channel (SODIMM Slots, up to 5200 MT/s, 96GB Max)
  • 2x M.2 2280 PCIe Gen 4.0x4 SSD Slots
  • 1x M.2 2230 Key E Slot for NIC
  • 2x SATA III Ports
  • 1x PCIe 4.0 X16 Slot for GPU (with Metal Fasteners）
  • Ports:
    • 1x USB 3.2 Gen 2 Type-C (Alt DisplayPort 1.4)
    • 2x USB 3.2 Gen 1 Type-A
    • 2x USB 2.0 Type-A
    • 1x HDMI 2.1
    • 1x DisplayPort 1.4
    • 1x RJ-45 2.5G Ethernet
    • 1x Line Out
    • 1x Line In
    • 1x Mic In
  • FAN/Audio/USB Headers:
    • 1x 4-pin CPU Fan header
    • 2x 4-pin System Fan header
    • 1x Front Panel Audio Header
    • 1x System Panel Headers
    • 1x USB 3.2 Gen 1 Header

Community Voting

Deal Score
+2
Good Deal
Get Deal at Minisforum

Leave a Comment

Unregistered (You)

18 Comments

Sign up for a Slickdeals account to remove this ad.

Dec 21, 2024 02:48 AM
79 Posts
Joined Oct 2016
beersyDec 21, 2024 02:48 AM
79 Posts
The 7945hx is a 16C, 32T CPU
1
Original Poster
Pro
Expert
This user is an Expert in Computers
Dec 21, 2024 05:08 AM
19,950 Posts
Joined Jul 2015
SuryasisDec 21, 2024 05:08 AM
Original Poster
Pro
Expert
This user is an Expert in Computers
19,950 Posts
Quote from beersy :
The 7945hx is a 16C, 32T CPU
Corrected, thanks for letting me know .
Dec 21, 2024 04:17 PM
1,182 Posts
Joined Aug 2019
SlickCrayon1512Dec 21, 2024 04:17 PM
1,182 Posts
This price forever. From before BF till now never changed.
Original Poster
Pro
Expert
This user is an Expert in Computers
Dec 22, 2024 03:34 AM
19,950 Posts
Joined Jul 2015
SuryasisDec 22, 2024 03:34 AM
Original Poster
Pro
Expert
This user is an Expert in Computers
19,950 Posts
Quote from SlickCrayon1512 :
This price forever. From before BF till now never changed.
This is a new launch and different form factor, Micro ATX and added two SATA III ports for adding higher capacity storage.
Last edited by Suryasis December 21, 2024 at 07:57 PM.
2
Jan 09, 2025 11:21 AM
5 Posts
Joined May 2019
KannabisWarriorJan 09, 2025 11:21 AM
5 Posts
Just grabbed this. I was about to purchase it on sale and then it went down today. I am starting my small form factor build and this is a perfect base for it.
Jan 09, 2025 07:05 PM
99 Posts
Joined Nov 2004
jason879Jan 09, 2025 07:05 PM
99 Posts
Amazon has it for $384 after coupon with prime delivery now. only 5 left.
https://www.amazon.com/gp/product/B0DRCWVL7R/
Jan 15, 2025 03:22 PM
307 Posts
Joined Oct 2008
SilentAgnosticJan 15, 2025 03:22 PM
307 Posts
Did anyone else pick up one of these? I'm curious what others are seeing for thermals. I'm doing an experimental build with one, but thermals seem rough with the defaults - seeing a lot of hitting 90~95C with a 360mm AIO that is more than capable. Getting some pretty decent Cinebench 2024 scores though...

Sign up for a Slickdeals account to remove this ad.

Feb 10, 2025 03:23 AM
124 Posts
Joined Feb 2022
only_khlav-kalashFeb 10, 2025 03:23 AM
124 Posts
Quote from SilentAgnostic :
Did anyone else pick up one of these? I'm curious what others are seeing for thermals. I'm doing an experimental build with one, but thermals seem rough with the defaults - seeing a lot of hitting 90~95C with a 360mm AIO that is more than capable. Getting some pretty decent Cinebench 2024 scores though...
I picked one up, will do some testing tomorrow. Idle was relatively high, but I'm using an axp-53 in a 2u case. In my experience with 7950x desktop chips 90-95 was normal as the chip is made to boost until it hits a certain temp. I did notice the settings on this one are limited (pbo etc). Overall it seems like a nice setup with some caveats. I have a 3u case that can take a 360mm aio that I may swap to, but going to try with an axp67 cooler first
Feb 10, 2025 03:45 AM
307 Posts
Joined Oct 2008
SilentAgnosticFeb 10, 2025 03:45 AM
307 Posts
Quote from only_khlav-kalash :
I picked one up, will do some testing tomorrow. Idle was relatively high, but I'm using an axp-53 in a 2u case. In my experience with 7950x desktop chips 90-95 was normal as the chip is made to boost until it hits a certain temp. I did notice the settings on this one are limited (pbo etc). Overall it seems like a nice setup with some caveats. I have a 3u case that can take a 360mm aio that I may swap to, but going to try with an axp67 cooler first
I'll save you the hassle since I've been messing with this for a while now. Set your Sustained PPT to 65000 (65W) and you can limit your max thermals to 90 or 95C (TJmax) in the BIOS. Liquid cooling is 100% overkill for this chip, especially a 360mm. the 90-95C is from the boost, and it did end up hitting 100C at times. Cinebench 2024 scores are around 1600-1650 multicore and around 113 best for single thread. These options in the BIOS I believe are under AMD PBS, if I recall correctly. After having messed with this one, I think I prefer the SE ITX boards.


EDIT: Added screenshot - wouldn't go in my original post for some reason.
Feb 10, 2025 10:26 PM
124 Posts
Joined Feb 2022
only_khlav-kalashFeb 10, 2025 10:26 PM
124 Posts
Quote from SilentAgnostic :
I'll save you the hassle since I've been messing with this for a while now. Set your Sustained PPT to 65000 (65W) and you can limit your max thermals to 90 or 95C (TJmax) in the BIOS. Liquid cooling is 100% overkill for this chip, especially a 360mm. the 90-95C is from the boost, and it did end up hitting 100C at times. Cinebench 2024 scores are around 1600-1650 multicore and around 113 best for single thread. These options in the BIOS I believe are under AMD PBS, if I recall correctly. After having messed with this one, I think I prefer the SE ITX boards.


EDIT: Added screenshot - wouldn't go in my original post for some reason.
Nice, thank you. Yeah I agree the itx seem to be a better deal. I have the itx barebones upstairs to mess with. Thanks for sharing your settings, my goal in the 2u setup was to max around 65w anyway so your settings sound perfect.
Feb 11, 2025 02:50 AM
307 Posts
Joined Oct 2008
SilentAgnosticFeb 11, 2025 02:50 AM
307 Posts
Quote from only_khlav-kalash :
Nice, thank you. Yeah I agree the itx seem to be a better deal. I have the itx barebones upstairs to mess with. Thanks for sharing your settings, my goal in the 2u setup was to max around 65w anyway so your settings sound perfect.
Yup, just slap a good 120mm fan on the ITX one. I had a lot of people recommend the Arctic P12 Max and they're only $10, so that's what I got. If you do decide to play around with undervolting (~1.1v) or messing with PBO and all core negative CO and stuff, let me know what you find out. For the build I did with the 360mm AIO, it just made 0 sense since it wasn't absorbing the extra heat
Feb 13, 2025 09:46 PM
124 Posts
Joined Feb 2022
only_khlav-kalashFeb 13, 2025 09:46 PM
124 Posts
Quote from SilentAgnostic :
Yup, just slap a good 120mm fan on the ITX one. I had a lot of people recommend the Arctic P12 Max and they're only $10, so that's what I got. If you do decide to play around with undervolting (~1.1v) or messing with PBO and all core negative CO and stuff, let me know what you find out. For the build I did with the 360mm AIO, it just made 0 sense since it wasn't absorbing the extra heat
Yeah, your 65w + 90 limit worked perfectly for this slim machine. I did mess around with negative PBO curve (like I do with my desktop 7800x3d and 7950x), but didn't see results I liked. I'm going to try swapping the AXP67-120 for the 53-90 and seeing if I get any significant improvement, but this should work fine with a low profile cooler. It is interesting that the MATX version still only has one pcie slot, so the ITX definitely seems like a better value
Feb 13, 2025 09:47 PM
124 Posts
Joined Feb 2022
only_khlav-kalashFeb 13, 2025 09:47 PM
124 Posts
Quote from SilentAgnostic :
Yup, just slap a good 120mm fan on the ITX one. I had a lot of people recommend the Arctic P12 Max and they're only $10, so that's what I got. If you do decide to play around with undervolting (~1.1v) or messing with PBO and all core negative CO and stuff, let me know what you find out. For the build I did with the 360mm AIO, it just made 0 sense since it wasn't absorbing the extra heat
Stupid question, but since you've been down this path and in case it helps others - for thermal paste on the M version, did you just apply a flat layer across the entire heat spreader before installing the cooler?
Feb 13, 2025 10:14 PM
549 Posts
Joined Dec 2006
scorpion9Feb 13, 2025 10:14 PM
549 Posts
Any idea if MINISFORUM BD795i SE will accept this [newegg.com] memory (PC RAM DDR5 6000 (PC5 48000)). MB seems to support DDR5 Dual channel (SODIMM Slots×2, up to 5200 MT/s, Max 96GB). I bought this during BF 2024 so stuck with it.

How will this for general usage/productivity. No gaming. Currently using 17 4790K DIY build.

I was planning to do mATX or ITX build with Ultra i7 265K from microcenter.
Last edited by scorpion9 February 13, 2025 at 02:17 PM.

Sign up for a Slickdeals account to remove this ad.

Feb 13, 2025 10:34 PM
124 Posts
Joined Feb 2022
only_khlav-kalashFeb 13, 2025 10:34 PM
124 Posts
Quote from scorpion9 :
Any idea if MINISFORUM BD795i SE will accept this [newegg.com] memory (PC RAM DDR5 6000 (PC5 48000)). MB seems to support DDR5 Dual channel (SODIMM Slots×2, up to 5200 MT/s, Max 96GB). I bought this during BF 2024 so stuck with it.

How will this for general usage/productivity. No gaming. Currently using 17 4790K DIY build.

I was planning to do mATX or ITX build with Ultra i7 265K from microcenter.
Link is desktop ram, it takes laptop ram
