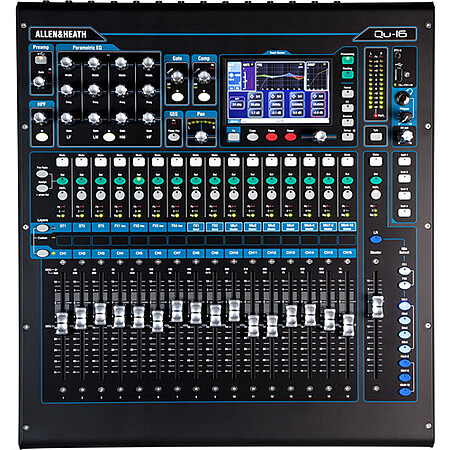

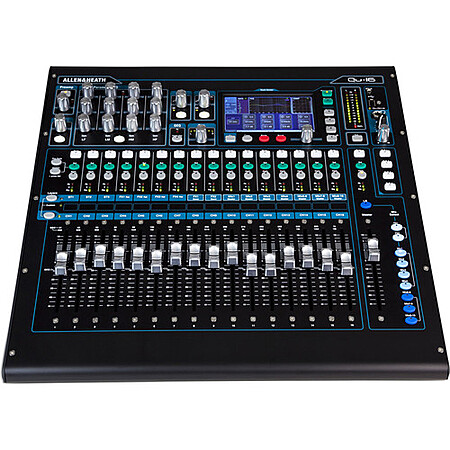

| Product Description: | The chrome edition of the Allen & Heath Qu-16C Rackmountable Digital Mixer is a 16-channel digital mixer and USB audio interface designed for live and installed sound as well as studio use. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8). It features 16 mic- or line-selectable inputs and 3 stereo line inputs. Its 16 anaLOGIQ microphone preamps have digitally recallable settings that can be saved and recalled for future sessions. The Qu-16 has a variety of output options, including 4 mono XLR mix outputs, 3 XLR stereo-pair mix outputs, an alternative TRS stereo-pair mix output, a TRS stereo-pair 2-track output, and a 2-channel AES digital output. |
| Product SKU: | 1201889 |
| 16_micline_inputs_and_3x_stereo_inputs: | Motorized 100mm Faders |
| analog_dynamic_range: | 112 dB |
| analog_inputs: | 1x XLR 3-Pin Talkback Input16x 1/4" TRS Balanced Line Input16x XLR 3-Pin Mic Input4x 1/4" TRS Balanced Input (2 Stereo Pairs, Half-Normalled)1x 1/8" / 3.5 mm TRS Unbalanced Input |

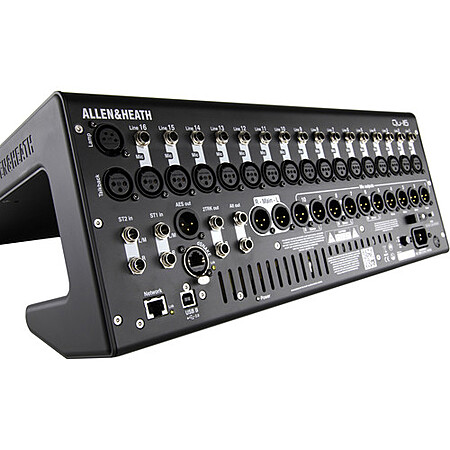

| analog_outputs: | 4x XLR 3-Pin Mono Mix Output6x XLR 3-Pin Mix Output (3 Stereo Pairs)2x XLR 3-Pin Main Output (1 Stereo Pair)2x 1/4" TRS Mix Output (1 Stereo Pair)2x 1/4" TRS Aux Output (1 Stereo Pair) |
| audio_delay: | Adjustable Up to 85 ms |
| bit_depth: | A/D Conversion:24-Bit Delta SigmaD/A Conversion:24-Bit Delta SigmaStereo Record:24-BitStereo Playback:16 / 24-BitMultitrack Playback, Multitrack Record:24-Bit |
| box_dimensions_lxwxh: | 26.5 x 23.5 x 13.5" |
| built-in_effects: | ReverbDelayReverb (Gated)ADT2x ChorusPhaserFlanger |
| chrome_knobs_faders_updated_firmware: | Touchscreen Interface |
| digital_io: | 1x RJ45 (Network)1x XLR AES3 Output1x etherCON dSNAKE (I/O) |
| dimensions: | 17.4 x 19.7 x 7.4" / 44.2 x 50 x 18.8 cm (Desk-Mounted)19 x 19.1 x 7.5" / 48.3 x 48.5 x 19.1 cm (Rack-Mounted) |
| display: | 5" Touchscreen |
| eq: | FX Returns:4-Band Parametric Input Channels:4-Band Parametric |
| eq_parameters: | 1x HF Shelf:±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2x MF Notch/Peak:±15 dB at 20 Hz to 20 kHz 1x LF Shelf:±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) |
| faders_level_adjustment: | 16x 3.9" / 100 mm Motorized Fader |
| filters: | High-Pass: 20 Hz to 2 kHz, 12 dB/Octave |
| frequency_response: | 20 Hz to 20 kHz ±0.5 dB |
| gaintrim_range: | Line:±24 dB (Stereo Channels) Line/Mic:-5 dB to 60 dB (in 1 dB Steps) |
| graphic_eq: | 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz |
| groups: | 4x Mute Group |
| input_polarity: | Normal/Reverse |
| input_power: | 100 to 240 VAC, 50 / 60 Hz |
| io_impedance: | AES3 Output:110 Ohms XLR Input:> 5 Kilohms 1/4" TRS Input:> 10 Kilohms Stereo Input:> 7 Kilohms 1/4" TRS, XLR Output:< 75 Ohms |
| max_input_level: | XLR Input:+19 dBu 1/4" TRS Input:+29 dBu 1/4" Aux Input:+22 dBu 1/8" / 3.5 mm Input:+19 dBu |
| midi_io: | No |
| mix_routing: | 22x Return24x Send4x Stereo FX Return |
| number_of_analog_input_channels: | 16 |
| number_of_analog_output_channels: | 6 |
| number_of_mic_preamps: | 16 |
| operating_conditions: | 32 to 95°F / 0 to 35°C |
| package_weight: | 30 lb |
| presets: | No |
| rack_mountable: | Yes |
| rackmount_size: | 11 U (with Non-Included Hardware) |
| sample_rates: | 48 kHzAES3 Output:48 kHzStereo Record:48 kHzStereo Playback:44.1 / 48 kHzMultitrack Playback/Multitrack Record:48 kHz |
| signal_generator: | Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix) |
| thdn: | 0.0005% at Unity Gain 0.001% at +30 dB Gain |
| usb_io: | 1x USB-A (External Memory)1x USB-B 2.0 (Audio Streaming) |
| usb_io_capacity: | 24x Input / 22x Output |
| weight: | 22 lb / 10 kg |
| wireless: | No |
