Link:
https://store.minisforum.com/prod...1918824693
Coupon: $50 Off via
2025-50 (Automatically applies to the Cart)
Spec:
- AM5 CPU socket supporting Ryzen 7000, 8000 and 9000 series Desktop Processors
- 2x DDR5 SODIMM Slot, up to 96GB 5200 MT/s
- 2x PCIe Gen 4x4 M.2 2280 Slot
- 1x PCIe Gen 3x4 M.2 2280 Slot
- 1x PCIe Gen 4x1 M.2 2280 Slot
- 1x M.2 2230 for NIC (Populated)
- Wi-Fi 6E 2x2 + Bluetooth 5.2

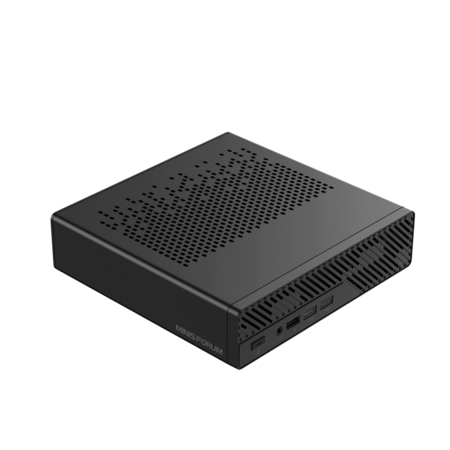

- Front Ports:
- 2x USB-A 3.2 Gen 1
- 1x USB-A 2.0
- 1x 3.5mm Audio Combo Jack

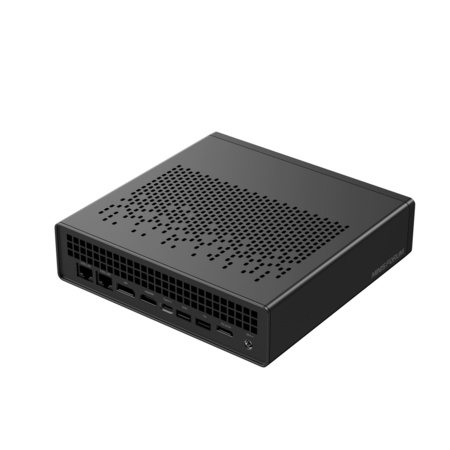

- Rear Ports:
- 1x DC-In (19V 12.63A, 240W)
- 1x HDMI 2.1
- 1x DisplayPort 2.0
- 1x OCuLink Dedicated Port
- 1x USB 4.0 Type-C 40 Gbps (Data + DisplayPort)
- 1x USB-A 3.2 gen 2 10 Gbps
- 1x USB-A 2.0
- 2x Realtek 2.5G RJ-45 supporting link aggregation
Features:- Supports Raphael (Ryzen 7000 desktop), Phoenix (Ryzen 8000 series Desktop) and Granite Ridge (Ryzen 9000 series Desktop) Processor.
- The 3 M.2 PCIe Gen 4 SSD bandwidth depends upon the CPU choice as the Phoenix APUs don't offer as many PCIe Gen 4 lanes as the Ryzen 7000 series Desktop Processors. If 8000 series is used, the 2nd PCIe Gen 4x4 Slot will run at Gen 4x2 speed.
