Nvidia RTX 2000 Ada 16GB GDDR6 ECC memory, 70W TGP, No External Power
2x M.2 2280 PCIe Gen 4x4 Slots
1x SATA III 6 Gbps Slot
1x M.2 2230 Slot for WLAN (Occupied)
Wi-Fi 6E 2x2 + Bluetooth 5.2
212*190*86mm (3.5 liter)
Power Adapter: DC 20V/11.5A or 230W
Ports:
1x 2.5G RJ-45 Lan
1x 1G RJ-45 Lan
2x USB 3.2 Gen 2 Type-A 10 Gbps (Front)
2x USB 3.2 Gen 1 Type-A 5 Gbps (Rear)
2x USB 2.0 Type-A (Rear)
1x USB 3.2 Gen 2 Type-C 10 Gbps (Front)
1x DC-In
1x DisplayPort 1.4 (Motherboard)
1x HDMI 2.0 (Motherboard)
4x Mini DisplayPort 1.4 (Nvidia Card)
2x COM Serial Ports
1x 3.5mm Mic In + 3.5mm Audio Combo Port (Front)
1x Power Button
Community Notes
This collaborative space allows users to contribute additional information, tips, and insights to enhance the original deal post. Feel free to share your knowledge and help fellow shoppers make informed decisions.

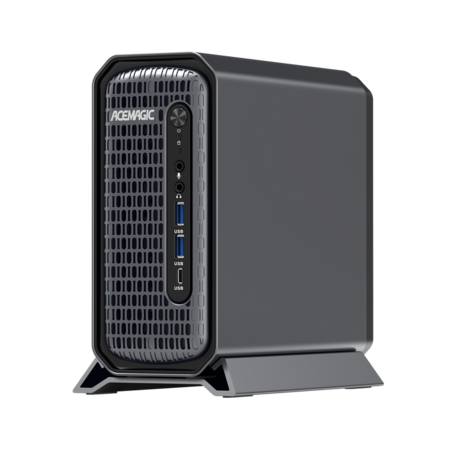

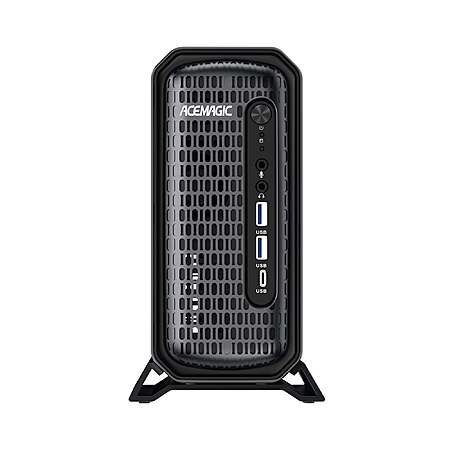

This is not a Mini PC but a small Ultra Compact Form factor Desktop/Mini Workstation, similar to Lenovo P3 Ultra. Here all the components (Except the customized Motherboard) are Desktop components. Technically you can use any 12th/13th/14th Gen Processor here.
As per the review, this runs surprisingly cooler for a Desktop Processor and that has been achieved by limiting the processor to 65W sustained. So, the CPU performance will not be same as a Big Desktop with AIO Colling, with the same Processor which can push it over 200W.
You can use any Dual Slot SFF GPUs, provided they don't need external power and limited to 75W power, which can be delivered by the PCIe 16 Slot.
This has a SATA III Slot and place for a 2.5" SSD/HDD.
