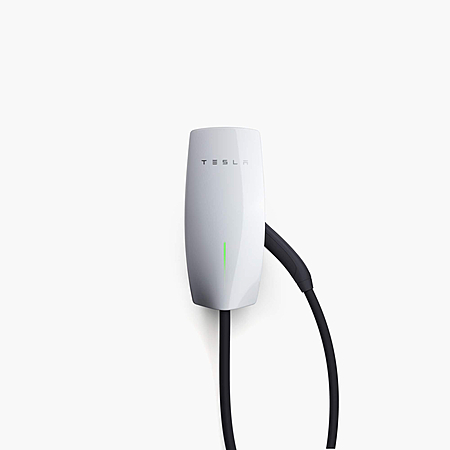

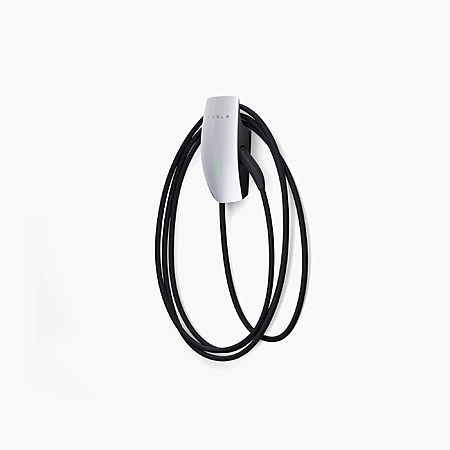

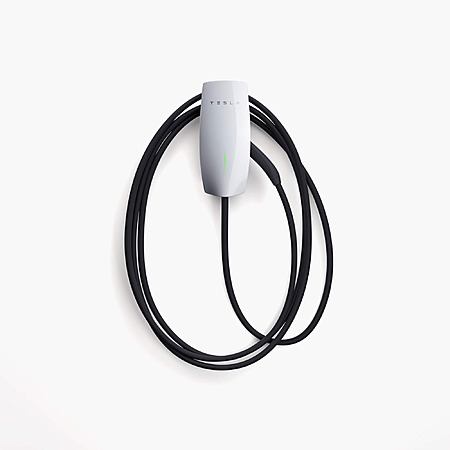

Tesla Wall Connector w/ 24' Cable
+ Free Shipping$495
$550
10% offGood Deal
Bad Deal
Save
Share
Get Deal at Retailer
Deal Details
Tesla.com has their Tesla Wall Connector w/ 24' Cable for $495. Shipping is free.
Thanks to community member MyCoke for finding this deal.
About this item:
Thanks to community member MyCoke for finding this deal.
About this item:
- Wall Connector is the most convenient charging solution for houses, apartments, hospitality properties and workplaces.
- With up to 44 miles of range added per hour of charging, a 24 ft (7.3m) cable length, multiple power settings, and a versatile indoor/outdoor design, Wall Connector provides unparalleled convenience.
- Wall Connectors can power-share to maximize existing electrical capacity, automatically distributing power to charge multiple cars simultaneously.
Editor's Notes
Written by johnny_miller | Staff- About this offer:
- Tesla Wall Connector must be installed by a qualified electrician. Visit our Find an Electrician page to obtain a quote from installers in your area. If needed, detailed installation videos and manuals are available here.
- Refer to the forum thread for additional information & offer discussion.
Community Notes
About the Poster
Deal Details
Community Notes
About the Poster
Tesla.com has their Tesla Wall Connector w/ 24' Cable for $495. Shipping is free.
Thanks to community member MyCoke for finding this deal.
About this item:
Thanks to community member MyCoke for finding this deal.
About this item:
- Wall Connector is the most convenient charging solution for houses, apartments, hospitality properties and workplaces.
- With up to 44 miles of range added per hour of charging, a 24 ft (7.3m) cable length, multiple power settings, and a versatile indoor/outdoor design, Wall Connector provides unparalleled convenience.
- Wall Connectors can power-share to maximize existing electrical capacity, automatically distributing power to charge multiple cars simultaneously.
Editor's Notes
Written by johnny_miller | Staff- About this offer:
- Tesla Wall Connector must be installed by a qualified electrician. Visit our Find an Electrician page to obtain a quote from installers in your area. If needed, detailed installation videos and manuals are available here.
- Refer to the forum thread for additional information & offer discussion.
Community Voting
Deal Score
+110
Good Deal
Bad Deal
Popular Deals
View AllJul 1, 2025 3:33 PM
$1.88$2.6428% off6.6-Oz Goldfish Flavor Blasted Xtra Cheddar Cheese Crackers $1.88 w/ S&S + Free Shipping w/ Prime or on orders over $35
0
There is no voting data on this thread
Jul 1, 2025 3:33 PM
$2.35$3.4832% off5-Pack 2.2-Oz Cheerios Whole Grain Oats Breakfast Cereal Pouches $2.35 w/ S&S + Free Shipping w/ Prime or on orders over $35
0
There is no voting data on this thread
Jul 1, 2025 3:33 PM
$100$19047% offSennheiser ACCENTUM Special Edition Hybrid Active Noise Cancellation Wireless Bluetooth Headphones (Black/Blue) $99.99 + Free Shipping
4
There is no voting data on this thread
Jul 1, 2025 3:33 PM
$8.38$2058% off[S&S] $8.38*: 4-Pack 2.7-Oz Degree Men Antiperspirant Deodorant (Woodsy) at Amazon
3
There is no voting data on this thread
Jul 1, 2025 3:33 PM
$18$4055% off$17.99*: 36W Mirabox Portable TV Dock Charger for Nintendo Switch w/ USB-C Cable at Amazon
4
There is no voting data on this thread
Trending Deals
View AllJul 1, 2025 3:33 PM
$800$1,60050% off8-Piece Callaway Golf 2021 Apex Iron Set (4-AW, Graphite, Stiff) $799.98 + Free Shipping (TEMP OOS, Can be ordered)
1
There is no voting data on this thread
Jul 1, 2025 3:33 PM
$250$35028% offBlackstone 4-Burner Propane Gas Flat Top Griddle, 36 in., Black, $249.99, free pickup, Tractor Supply Company
7
There is no voting data on this thread
Jul 1, 2025 3:33 PM
$7.59$1236% off[S&S] $7.59*: 3-Count 20-oz Hellmann's Real Mayonnaise Squeeze Bottles at Amazon
0
There is no voting data on this thread
Jul 1, 2025 3:33 PM
$15$5572% offPrime Members: Amazon Echo Auto Car Accessory w/ Alexa (2nd Gen) $14.99 + Free Shipping
4
There is no voting data on this thread
Jul 1, 2025 3:33 PM
$62$9031% offPrime Members: Echo Bundle: 5th Gen Echo Dot w/ Limited Edition Marvel Iron Man Stand (Various Colors) $61.98 + Free Shipping
2
There is no voting data on this thread
Leave a Comment
Top Comments
Your typical Level 1 / Level 2 home EVSE (i.e., charging station) can typically be plugged into a NEMA 5-15 (your average 120V outlet), NEMA 6-20 (240V outlet, not nearly as commonplace in your average home vs. NEMA 5-15), NEMA 14-30 (240V, typically used to plug electric dryers into), or NEMA 14-50 (240V, typically used for electric ovens and RVs) plug outlets, depending on the type of plug that comes with the EVSE--many portable (not to be confused with wall mounted home EVSEs like the Tesla one mentioned in this thread) Level 1 / Level 2 EVSEs include an adapter to plug it into a NEMA 5-15 receptacle.
As noted above a NEMA 5-15 is rated at 120V whereas the other ones I mentioned are rated at 240V; NEMA 5-15 outlets are typically wired to either 15A or 20A circuit breakers (for the latter, a 5-15 plug outlet rated at 20A must be used), NEMA 14-30 outlets need to be wired to a minimum 30A breaker, and NEMA 14-50 must be wired to a minimum 50A breaker.
It should also be pointed out that if choosing to run wire from a 60A breaker the wire gauge used here is somewhat thicker than that used to run wire from a 50A breaker--meaning, more expensive per foot; you many want to keep that in mind if you don't have a 60A breaker already in place and are looking to have one installed. Do not try to be cheap and cheat your way around it--electrical code requires it plus it's not worth the risk of potentially having your home burn down. If looking to power a home EVSE off a 60A circuit it is highly recommended to hardwire said EVSE to the 60A circuit rather than plugging it into a receptacle capable of handling 60A.
As far as current draw itself goes--electrical code requires that the max current draw cannot exceed 80% of the circuit breaker's rating--meaning, for a 60A breaker the max draw is 48A, 50A breaker is 40A, 30A breaker is 24A, 20A breaker is 16A, and 15A breaker is 12A. What does this mean in terms of power draw? Given that W(atts) = V(olts) * A(mps), and the voltage rating of the various NEMA plugs I mentioned above, you get this (and yes I realize this is explained on the Tesla wall connector product page as well):
NEMA 5-15 -> 120V * 12A = 1.44 kW
NEMA 6-20 -> 240V * 16A = 3.84 kW
NEMA 14-30 -> 240V * 24A = 5.76 kW
NEMA 14-50 -> 240V * 40A = 9.6 kW
NEMA 60A -> 240V * 48A = 11.52 kW
It should be pointed out that currently there aren't that many EV models that can charge at rates higher than 11 kW so unless your home already has a 60A breaker (and an outlet wired into the 60A circuit) already in place and/or you have a Tesla and really need the Tesla wall charger's 48A capabilities it makes little sense to spend money to have one installed. Your typical public charging stations are capable of charging at much higher kW rates because they use DC charging vs. AC charging (which is applicable to the stuff I mentioned above).
I'm not gonna debate as to whether one really needs to charge at higher rates when charging at home and/or its effects on long-term battery health, just simply throwing out the raw numbers here for those wondering about charging times; you can do the math by looking at the various power draws I listed above and knowing the battery capacity of your EV in order to then determine how long it will take to charge your vehicle based on your EVSE's capabilities and home electrical setup.
Every other modern Tesla can charge at 48 amps, which the Wall Connector can supply.
A mobile connector + 14-50 adapter costs $320 anyways, this isn't much more unless you're okay not carrying the mobile connector.
382 Comments
Sign up for a Slickdeals account to remove this ad.
Our community has rated this post as helpful. If you agree, why not thank DAN-T9671
Our community has rated this post as helpful. If you agree, why not thank liquid_celica
Our community has rated this post as helpful. If you agree, why not thank elpablolv
Sign up for a Slickdeals account to remove this ad.
Our community has rated this post as helpful. If you agree, why not thank shastada
Our community has rated this post as helpful. If you agree, why not thank psychos
Every other modern Tesla can charge at 48 amps, which the Wall Connector can supply.
A mobile connector + 14-50 adapter costs $320 anyways, this isn't much more unless you're okay not carrying the mobile connector.
Our community has rated this post as helpful. If you agree, why not thank hahoranges
NEMA 14-50 is an electric plug, so yes, technically you can plug any appliance that uses that socket, including Samsung and LG dryers. What's your point? 48 amp vs 32 amp = 50% faster. It won't benefit you if you have the standard range model 3, as alluded to above. Now only you can decide if 50% charger rate is worth it. Don't make sweeping statements like that.
Sign up for a Slickdeals account to remove this ad.
Every other modern Tesla can charge at 48 amps, which the Wall Connector can supply.
FYI the 30% EV charging tax credit also applies to this, making it $347. A mobile connector + 14-50 adapter costs $320. So unless you're okay with not having a mobile connector in your car, you don't really save any money.
