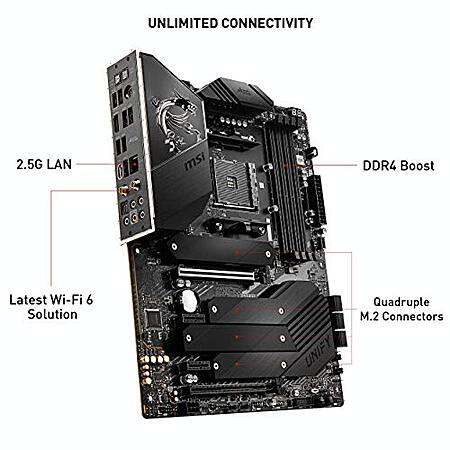

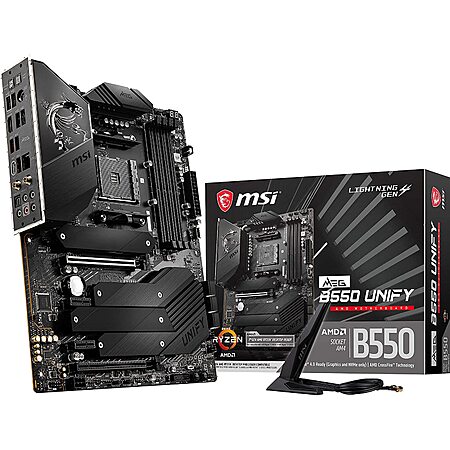

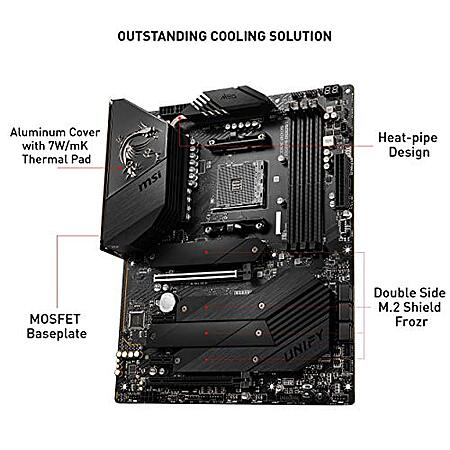

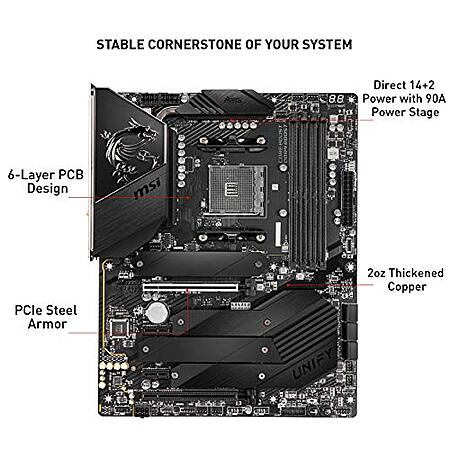

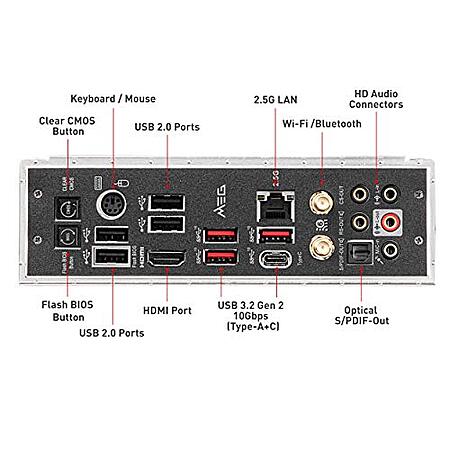

MSI MEG B550 Unify Gaming Motherboard AMD AM4 $240 (various retailers)
$240
$290
17% offAmazon
Visit AmazonGood Deal
Bad Deal
Save
Share
Leave a Comment
40 Comments
Sign up for a Slickdeals account to remove this ad.
Our community has rated this post as helpful. If you agree, why not thank duenor
There are cheap B550 boards too, this one just packs a lot of features and quality.
Edit: There's some incorrect info below about the M.2 slot capabilities, so here are the actual specs (see screenshot from manual). By default the bandwidth for the 4 M.2 slots is mixed between CPU and Chipset, with 1 at PCIe 3/4 x4, 1 at PCIe 3 x4, and 2 of them run at PCIe3 x2 mode (NOT x1).
HOWEVER, you can choose to run all 4 M.2 slots in CPU mode (using PCIe 4 lanes). That makes 3 of the M.2 slots run at PCIe 3/4 x4 mode, and 1 at PCIe 3 x4 mode.
The only potential drawback with CPU mode for M.2 is that PCIe slot 1 for GPU is reduced to x8. If you have a PCIe 4 GPU then this will hardly make a difference (like, 0 with current gen) since PCIe 3 x16 and PCIe 4 x8 are equivalent bandwidth. But, if you have an older PCIe 3 GPU you'll be running in PCIe 3 x8 mode, which can reduce GPU performance ever so slightly perhaps (see negligible test results for GTX 1080 here: https://www.gamersnexus
Bottom line is that if you want full bandwidth for all 4 M.2 slots, it's there!
Our community has rated this post as helpful. If you agree, why not thank Spawne32
MEG B550 Unify and B550 Unify-X offers 4 PCIe slots. Here is the configuration:
PCI_E1 is connected to CPU and supports PCIe 4.0 x16.
PCI_E2 & PCI_3 are connected to chipset and support PCI 3.0 x1.
PCI_E4 is connected to chipset and supports up to PCIe 3.0 x4.
But I suppose if b550 is all you need and x570 offers you nothing, then, sure, I get it.
one thing you do get here that you don't on similarly priced x570 is wifi.
Sign up for a Slickdeals account to remove this ad.
But I suppose if b550 is all you need and x570 offers you nothing, then, sure, I get it.
one thing you do get here that you don't on similarly priced x570 is wifi.
