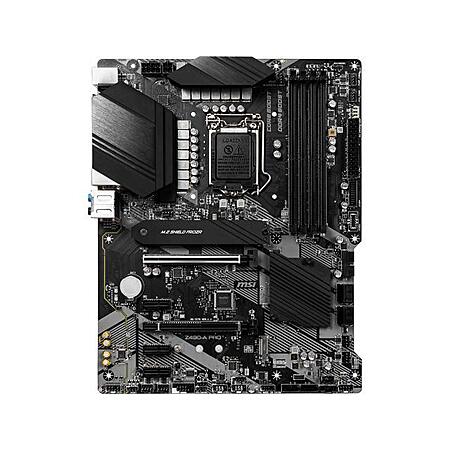

| Product Description: | Buy Refurbished: MSI PRO Z490-A PRO LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard with fast shipping and top-rated customer service. Once you know, you Newegg! |
| Product SKU: | N82E16813144444 |
| Audio Channels Audio Channels: | 7.1 Channels |
| Audio Chipset Audio Chipset: | Realtek ALC892/ALC897 |

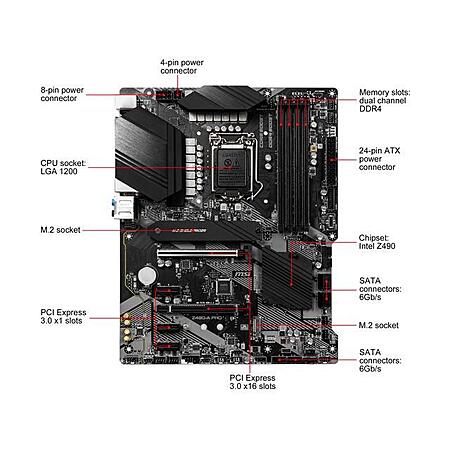

| Back I/O Ports: | 1 x DisplayPort1 x HDMI1 x LAN (RJ45)1 x PS/2 Keyboard/Mouse Combo1 x USB 3.2 Gen 2 Type-A1 x USB 3.2 Gen 2 Type-C2 x USB 3.2 Gen 1 Type-A2 x USB 2.0/1.16 x Audio Jacks |
| Brand: | MSI |
| CPU Socket Type CPU Socket Type: | LGA 1200 |
| CPU Type: | Supports 11th / 10th Gen Intel Core processorsSupports Intel Pentium Gold and Celeron processors* Onboard graphics output are disabled when using the F SKU processors.* BIOS updated to be compatible with 11th Gen Intel Core Processors. |
| Channel Supported Channel Supported: | Dual Channel |
| Chipset Chipset: | Intel Z490 |
| Date First Available: | April 19, 2021 |
| Dimensions (W x L): | 12.0" x 9.6" |
| Features: | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socketSupports DDR4 Memory, up to 5000(OC) MHzReady 4 the Future: Support Lightning Gen 4 Solution for the futurePremium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionTurbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDsIntel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speedsAudio Boost: Reward your ears with studio grade sound qualityMulti-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire |
| Form Factor: | ATX |
| Intel Optane Ready: | Yes |
| LAN Chipset: | Realtek RTL8125B-CG |
| LED Lighting: | RGB |
| Limited Warranty period (labor): | 90 days |
| Limited Warranty period (parts): | 90 days |
| M.2: | 2 x M.2 slots (Key M):- M2_1 slot:- CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4- Chipset support mode- supports PCIe 3.0 x4 and SATA 6Gb/s- Supports 2242/2260/2280/22110 storage devices*- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices **- Intel Optane Memory Ready ***- Supports Intel Smart Response Technology for Intel Core processors* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.** SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.*** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Max LAN Speed: | 10/100/1000/2500Mbps |
| Maximum Memory Supported: | 128GB |
| Memory Standard: | Supports 1R 2933 / 2666 / 2133 *1DPC 1R Max speed up to 5000+1DPC 2R Max speed up to 4500+2DPC 1R Max speed up to 4400+2DPC 2R Max speed up to 4000+* Please refer www.msi.com for more information on compatible memory. |
| Model: | Z490-A PRO |
| Number of Memory Slots: | 4x288pin (DDR4) |
| Onboard USB: | 1 x USB 3.2 Gen 1 5Gbps Type-C port2 x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports)2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) |
| Onboard Video Chipset Onboard Video Chipset: | Supported only by CPU with integrated graphic |
| Other Connectors: | 1 x 4-pin CPU fan connector1 x 4-pin water pump connector6 x 4-pin system fan connectors1 x front panel audio connector2 x system panel connectors1 x Chassis Intrusion connector1 x Clear CMOS jumper1 x 4-pin RGB LED connector2 x 3-pin RAINBOW LED connectors1 x serial port connector1 x TPM module connector1 x TBT connector ** Thunderbolt card need support RTD3 |
| PCI Express 3.0 x16: | 1 x PCI Express 3.0 x16 |
| PCI Express 4.0 x16: | 1 x PCI Express 4.0 x16** Actual support may vary by CPU. |
| PCI Express x1: | 3 x PCI Express x1 |
| Power Pin: | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector |
| Return for refund until: | January 31, 2023 |
| Return for replacement until: | January 31, 2023 |
| SATA 6Gb/s SATA 6Gb/s: | 6 x SATA 6Gb/s |
| SATA RAID: | 0/1/5/10 |
| Series: | PRO |
| Support Phone: | 1-626-913-0828 |
| Windows 11: | Supported |
