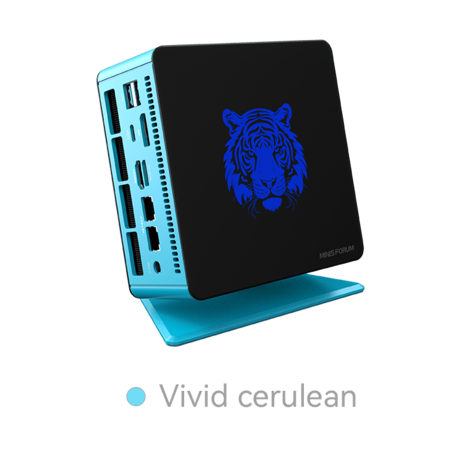

Minisforum EliteMini UM780 XTX Barebone (Vivid cerulean): Ryzen 7 7840HS(70W), 2x DDR5 SODIMM, 2x PCIe Gen4 2280 NVMe, 2x USB4, Oculink Port @ $439 & More

$439

Minisforum
Visit Minisforum

Why are you downvoting this deal?

Good Deal?
15Comments
Save
Share
Deal Details
Minisforum is offering EliteMini UM780M Mini PC Barebone [minisforum.com] (Vivid Cerulean) with Oculink Port @ $479 -$40 off via UM780XTXB-save40 = $439, as part of their Black Friday Deal.

Other Configurations:

64GB RAM+1TB SSD [minisforum.com] @ $679


Note: Barebone does not come with Windows 11. Only the versions with Ram and SSD come with Windows 11 preinstalled.

This model is the upgraded one with the below features:

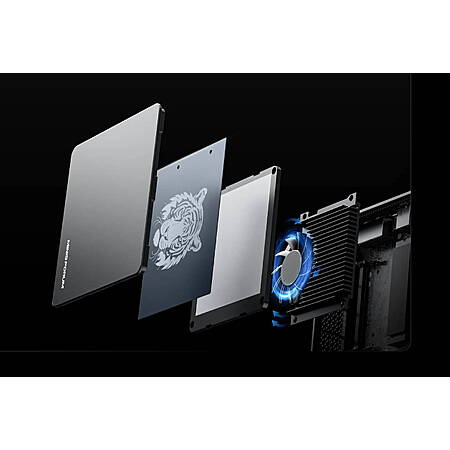

  • Upgrade Colling, supporting up to 70W TDP for the CPU
  • Up to 96GB Ram support using 48GB DDR5 SODIMM Modules
  • Magnetic Cover with RGB backlight and replacable Backlighting
  • Oculink Port which can be used using a M.2 2280 to Oculink Adapter. Oculink can utilize the full bandwidth of PCIe Gen 4 Speed, over Thunderbolt 3/4 which are restricted to PCIe Gen 3 speed and capable of providing 64 Gbps bandwidth, twice than that of Thunderbolt 3/4 32 Gbps (8GBps in Thunderbolt is reserved for Dsiplay Signal and 32 Gbps is available for Data). In this case, one of the PCIe Gen 4x4 2280 Slots need to be used. The M.2 to OCuLink Adapter is included in the Box.
  • This model uses a new small form factor GaN based 120W Power Adapter.

Spec:
  • Ryzen 7 7840HS 8C/16T 3.8 GHz (5.1 GHz Boost, 24MB Cache), 70W TDP
  • Radeon 780M Graphics @ 2800 MHz
  • 2x DDR5 SODIMM Slot, 96GB Max, 5600 MHz
  • 2x M.2 2280 PCIe Gen4x4 Slots
  • 1x M.2 2230 (Populated with WiFi + BT card)
  • Wi-Fi 6E + Bluetooth 5.3 + 2x 2.5G Ethernet
  • Ports:
    • 2x USB4 Type-C 40 Gbps(Power Delivery, DisplayPort 1.4)
    • 4x USB 3.2 Gen 2 Type-A 10 Gbps
    • 1x Oculink Port
    • 1x DisplayPort 1.4
    • 1x HDMI 2.1
    • 1x 3.5mm Audio Jack

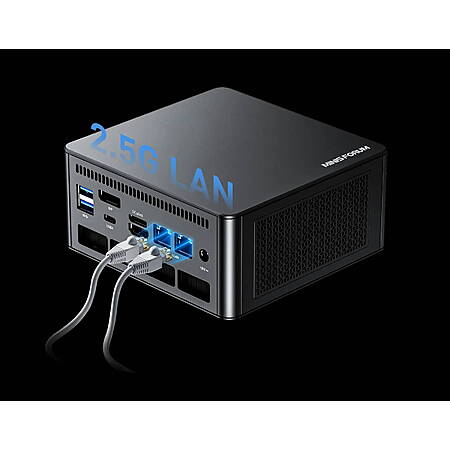

    • 2x RJ-45 2.5 Gbps Ethernet with link aggregation
    • 1x Clear CMOS
    • 1x DMIC
    • 1x 19V Power Port
Community Notes
About the Poster
Deal Details
Community Notes
About the Poster
Minisforum is offering EliteMini UM780M Mini PC Barebone [minisforum.com] (Vivid Cerulean) with Oculink Port @ $479 -$40 off via UM780XTXB-save40 = $439, as part of their Black Friday Deal.

Other Configurations:

64GB RAM+1TB SSD [minisforum.com] @ $679


Note: Barebone does not come with Windows 11. Only the versions with Ram and SSD come with Windows 11 preinstalled.

This model is the upgraded one with the below features:
  • Upgrade Colling, supporting up to 70W TDP for the CPU
  • Up to 96GB Ram support using 48GB DDR5 SODIMM Modules
  • Magnetic Cover with RGB backlight and replacable Backlighting
  • Oculink Port which can be used using a M.2 2280 to Oculink Adapter. Oculink can utilize the full bandwidth of PCIe Gen 4 Speed, over Thunderbolt 3/4 which are restricted to PCIe Gen 3 speed and capable of providing 64 Gbps bandwidth, twice than that of Thunderbolt 3/4 32 Gbps (8GBps in Thunderbolt is reserved for Dsiplay Signal and 32 Gbps is available for Data). In this case, one of the PCIe Gen 4x4 2280 Slots need to be used. The M.2 to OCuLink Adapter is included in the Box.
  • This model uses a new small form factor GaN based 120W Power Adapter.

Spec:
  • Ryzen 7 7840HS 8C/16T 3.8 GHz (5.1 GHz Boost, 24MB Cache), 70W TDP
  • Radeon 780M Graphics @ 2800 MHz
  • 2x DDR5 SODIMM Slot, 96GB Max, 5600 MHz
  • 2x M.2 2280 PCIe Gen4x4 Slots
  • 1x M.2 2230 (Populated with WiFi + BT card)
  • Wi-Fi 6E + Bluetooth 5.3 + 2x 2.5G Ethernet
  • Ports:
    • 2x USB4 Type-C 40 Gbps(Power Delivery, DisplayPort 1.4)
    • 4x USB 3.2 Gen 2 Type-A 10 Gbps
    • 1x Oculink Port
    • 1x DisplayPort 1.4
    • 1x HDMI 2.1
    • 1x 3.5mm Audio Jack
    • 2x RJ-45 2.5 Gbps Ethernet with link aggregation
    • 1x Clear CMOS
    • 1x DMIC
    • 1x 19V Power Port

Community Voting

Deal Score
+4
Good Deal
Bad Deal

Why are you downvoting this deal?

Visit Minisforum

Join The Conversation

Share your experience with the Slickdeals community

Share information with the community. Please follow our Community Guidelines and be kind!

15 Comments

Sign up for a Slickdeals account to remove this ad.

Pro
Nov 23, 2023 5:18 AM
794 Comments
Joined Mar 2022
doubletoaster
Pro
Nov 23, 2023 5:18 AM
794 Comments
The real use of the OCulink port would be an eGPU, not necessarily the M.2 2280 SSD.
1
1
Original Poster
Pro
Expert
This user is an Expert in Computers
Nov 23, 2023 5:31 AM
20.7K Comments
Joined Jul 2015
SuryasisNov 23, 2023 5:31 AM
Original Poster
Pro
Expert
This user is an Expert in Computers
20.7K Comments
Quote from doubletoaster View quoted comment :
The real use of the OCulink port would be an eGPU, not necessarily the M.2 2280 SSD.
I don't think you understood correctly. The Chassis has a cutout for the OCULink Port but for adding that, you need to add the supplied M.2 (PCIe Gen 4x4) to OCuLink Adapter to the 2nd M.2 Port, hence using that port and having one M.2 slot for adding SSD.
Nov 23, 2023 11:53 AM
880 Comments
Joined Oct 2014
jlong129Nov 23, 2023 11:53 AM
880 Comments
Non-barebones comes with windows 11 HOME. Storage is a basic Kingston NVME.
I'll be getting barebones and adding my own components.
Nov 23, 2023 2:15 PM
1 Comments
Joined Nov 2017
shalauddin911Nov 23, 2023 2:15 PM
1 Comments
notes : L3 cache is 16 MB on this model, Ryzenâ„¢ 7 7840HS @ 2700 MHz, Max Ram 64 GB if uses 5600 MHz, 96 for 4800 MHz. Can't go above 4K 60 Hz.
1
Original Poster
Pro
Expert
This user is an Expert in Computers
Nov 23, 2023 3:59 PM
20.7K Comments
Joined Jul 2015
SuryasisNov 23, 2023 3:59 PM
Original Poster
Pro
Expert
This user is an Expert in Computers
20.7K Comments
Quote from shalauddin911 View quoted comment :
notes : L3 cache is 16 MB on this model, Ryzenâ„¢ 7 7840HS @ 2700 MHz, Max Ram 64 GB if uses 5600 MHz, 96 for 4800 MHz. Can't go above 4K 60 Hz.
8MB L2 + 16MB L3 = 24MB Total Cache. And why it can't go above 4K@60Hz.
The HDMI 2.1 can run 4K @ 120Hz, the DP can run 4K@165Hz and the two USB 4 ports can run 8K @ 60Hz. I am using 7940HS and running a LG 4K 165 Hz Monitor at 120Hz using the HDMI 2.1
Nov 23, 2023 11:50 PM
7 Comments
Joined Aug 2007
shtoddNov 23, 2023 11:50 PM
7 Comments
Please suggest memory and ssd deals to add to this barebone that are a better value or performance than the non-barebones minisforum is offering. Thank you!
Original Poster
Pro
Expert
This user is an Expert in Computers
Nov 24, 2023 4:06 AM
20.7K Comments
Joined Jul 2015
SuryasisNov 24, 2023 4:06 AM
Original Poster
Pro
Expert
This user is an Expert in Computers
20.7K Comments
Quote from shtodd View quoted comment :
Please suggest memory and ssd deals to add to this barebone that are a better value or performance than the non-barebones minisforum is offering. Thank you!
For SSD, I think you should go with a 2TB one, in case you want to use the other M.2 port for adding the OCuLink Adapter. Crucial P5 Plus deal at $90 is apretty solid deal.
https://slickdeals.net/f/17071507-2tb-crucial-p5-plus-m-2-2280-pcie-4-0-x4-nvme-3d-nand-internal-solid-state-drive-89-free-shipping?src=category_page
For Ram, going for 5600 MHz will give a decent boost to your integrated GPU but they costs a bit more than the most common 4800 MHz modules.
I think Crucial DDR5 5600 MHz 16GB module at $46 in newegg is a decent one. Get two of them for dual channel.
https://www.newegg.com/crucial-16...6820156314

Sign up for a Slickdeals account to remove this ad.

Nov 24, 2023 4:12 AM
9.1K Comments
Joined Dec 2008
fireballsNov 24, 2023 4:12 AM
9.1K Comments
Quote from Suryasis View quoted comment :
For SSD, I think you should go with a 2TB one, in case you want to use the other M.2 port for adding the OCuLink Adapter. Crucial P5 Plus deal at $90 is apretty solid deal.
https://slickdeals.net/f/17071507-2tb-crucial-p5-plus-m-2-2280-pcie-4-0-x4-nvme-3d-nand-internal-solid-state-drive-89-free-shipping?src=category_page
For Ram, going for 5600 MHz will give a decent boost to your integrated GPU but they costs a bit more than the most common 4800 MHz modules.
I think Crucial DDR5 5600 MHz 16GB module at $46 in newegg is a decent one. Get two of them for dual channel.
https://www.newegg.com/crucial-16...6820156314
If you really want to optimize the 780m I'd go with this one:

https://www.newegg.com/kingston-3...001J-014J9

Dual rank cl40
Nov 26, 2023 11:03 AM
51 Comments
Joined Jun 2012
fcreevesNov 26, 2023 11:03 AM
51 Comments
I pulled my RAM [newegg.com] and SSD [amazon.com] from the UM790 Pro I just sold. I pre-ordered this on Nov 9th when it went live on official site. With the dual nic I can actually remove the unneeded Intel Wifi and replace with a 2230 SSD [amazon.com].

These new MiniPCs are amazing. I am becoming a MinisForum fanboy? I will also be pre-ordering Minisforum Project DRFXI [notebookcheck.net] or the BD770i [minisforum.com] if they release it with the 7945HX. The motherboard would pair really well with the JONSBO D31 MESH Case. [newegg.com]

The AMD 780M mobile is amazing on board graphics. However, Intel will soon be releasing FASTER iGPU CPUs soon. This will be so good for consumers. It is exciting to think of what the performace of budget offerings will be in a couple of years! ...or even this time next year.
Last edited by fcreeves November 26, 2023 at 03:05 AM.
Original Poster
Pro
Expert
This user is an Expert in Computers
Nov 26, 2023 4:15 PM
20.7K Comments
Joined Jul 2015
SuryasisNov 26, 2023 4:15 PM
Original Poster
Pro
Expert
This user is an Expert in Computers
20.7K Comments
Quote from fcreeves View quoted comment :
I pulled my RAM [newegg.com] and SSD [amazon.com] from the UM790 Pro I just sold. I pre-ordered this on Nov 9th when it went live on official site. With the dual nic I can actually remove the unneeded Intel Wifi and replace with a 2230 SSD [amazon.com].

These new MiniPCs are amazing. I am becoming a MinisForum fanboy? I will also be pre-ordering Minisforum Project DRFXI [notebookcheck.net] or the BD770i [minisforum.com] if they release it with the 7945HX. The motherboard would pair really well with the JONSBO D31 MESH Case. [newegg.com]

The AMD 780M mobile is amazing on board graphics. However, Intel will soon be releasing FASTER iGPU CPUs soon. This will be so good for consumers. It is exciting to think of what the performace of budget offerings will be in a couple of years! ...or even this time next year.
I think the 7945HX MoDT platform will be released early next year and even I'm interested on that one.
Nov 29, 2023 2:18 AM
1.2K Comments
Joined Jan 2007
wellcumNov 29, 2023 2:18 AM
1.2K Comments
Anyone know if this comes with 5600 RAM, or only support up to 5600? And what's brand/model of SSD? They charge $240 extra for 64G/1TB, that seems the going rate buying separately? Assuming 5600 and relatively reasonable SSD?

No idea how good a deal this is. Haven't bought computer for decades. Any suggestions? Thanks
Original Poster
Pro
Expert
This user is an Expert in Computers
Nov 29, 2023 3:12 PM
20.7K Comments
Joined Jul 2015
SuryasisNov 29, 2023 3:12 PM
Original Poster
Pro
Expert
This user is an Expert in Computers
20.7K Comments
Quote from wellcum View quoted comment :
Anyone know if this comes with 5600 RAM, or only support up to 5600? And what's brand/model of SSD? They charge $240 extra for 64G/1TB, that seems the going rate buying separately? Assuming 5600 and relatively reasonable SSD?

No idea how good a deal this is. Haven't bought computer for decades. Any suggestions? Thanks
It comes with 5600 MHz Ram. Check the F&A section.
Nov 29, 2023 6:54 PM
58 Comments
Joined Jul 2016
DisguisedAsAnotherNov 29, 2023 6:54 PM
58 Comments
Quote from jlong129 View quoted comment :
Non-barebones comes with windows 11 HOME. Storage is a basic Kingston NVME.
I'll be getting barebones and adding my own components.
wish there was a way to opt out of win home and save money...
Dec 6, 2023 2:05 AM
12 Comments
Joined Nov 2014
raguuDec 6, 2023 2:05 AM
12 Comments
Quote from fcreeves View quoted comment :
I pulled my RAM [newegg.com] and SSD [amazon.com] from the UM790 Pro I just sold. I pre-ordered this on Nov 9th when it went live on official site. With the dual nic I can actually remove the unneeded Intel Wifi and replace with a 2230 SSD [amazon.com].

These new MiniPCs are amazing. I am becoming a MinisForum fanboy? I will also be pre-ordering Minisforum Project DRFXI [notebookcheck.net] or the BD770i [minisforum.com] if they release it with the 7945HX. The motherboard would pair really well with the JONSBO D31 MESH Case. [newegg.com]

The AMD 780M mobile is amazing on board graphics. However, Intel will soon be releasing FASTER iGPU CPUs soon. This will be so good for consumers. It is exciting to think of what the performace of budget offerings will be in a couple of years! ...or even this time next year.
Your linked ssd has heatsink attached, can a ssd with heat sink fit these minipcs um790pro or um780xtx? Does it have space in there to fit. I am thinking to order 990pro with heat sink and they also have without heat sink option. This for my um780xtx barebones
https://www.samsung.com/us/comput...-v9p2t0cw/

Sign up for a Slickdeals account to remove this ad.

Dec 6, 2023 11:53 AM
51 Comments
Joined Jun 2012
fcreevesDec 6, 2023 11:53 AM
51 Comments
Quote from raguu View quoted comment :
Your linked ssd has heatsink attached, can a ssd with heat sink fit these minipcs um790pro or um780xtx? Does it have space in there to fit. I am thinking to order 990pro with heat sink and they also have without heat sink option. This for my um780xtx barebones
https://www.samsung.com/us/comput...-v9p2t0cw/
I am pretty certain you DO NOT need an additional heat sink as they are built into the PC...(with thermal pads) I've only opened the 780 xtx once. I think I the heat sink in a box. I'll open it up again this weekend to remove the Wi-Fi adapter to replace it with a 2GB 2230 SSD I have been meaning to put in. I've actually done 3 more random (older gen) MinusForum barebones office PCs this past week for customers. Everyone loves them so far. Time will be the true test.

You can confirm this with the videos on MinusForum...but I am pretty darn certain you will not need a heatsink as I'm nearly 100% sure I didn't use mine. If I get home at a decent hour tonight I'll open up my wall to put a couple (LAN & NAS) CAT6 receptacles in so I can eliminate the 2230 WiFi and utilize the dual antenna BT 5.3 USB adapter.
Last edited by fcreeves December 6, 2023 at 04:05 AM.
