Minisforum has for
Preorder: select MS-01 Mini Workstations on sale as listed below when you apply discount code
COUPERT10MINISFORUM at checkout.
Shipping is free (Ships on 03/29/2024).
Thanks to Community Member
Suryasis for finding this deal.
Available (prices after
COUPERT10MINISFORUM):
Note: Barebone model does not come with Windows License.
Specs:
- Core i9-12900H (6P+8E)/20T CPU (5 GHz Turbo, 24MB Cache)
- Or Core i5-12450H (4P+4E)/12T CPU (4.4 GHz Turbo, 12MB Cache)
- Intel Iris Xe Graphics (96 EU)
- 2x DDR5-5200 SODIMM (64GB Max)

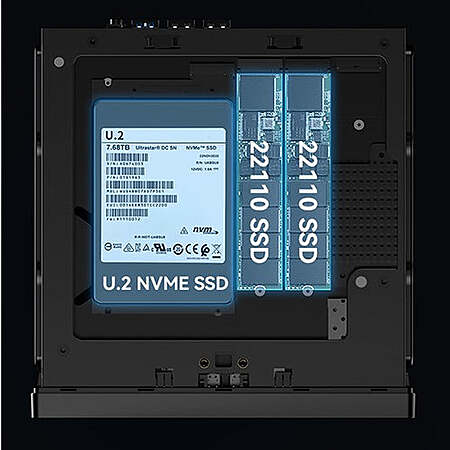

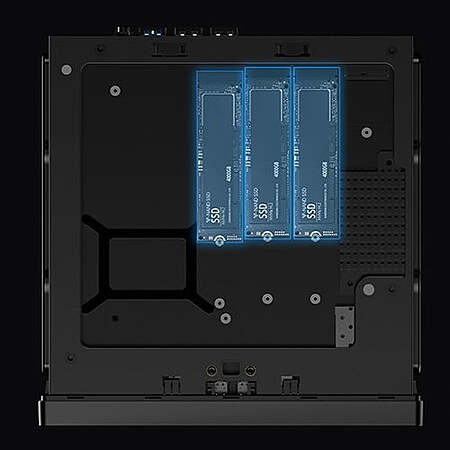

- 1x M.2 2280 PCIe Gen 4x4 (Alt U2 Enterprise SSD support)
- 1x M.2 2280/22110 PCIe Gen 3 x4 NVMe
- 1x M.2 2280/22110 PCIe Gen 3 x2 NVMe
- 1x M.2 2230 Slot (Populated)

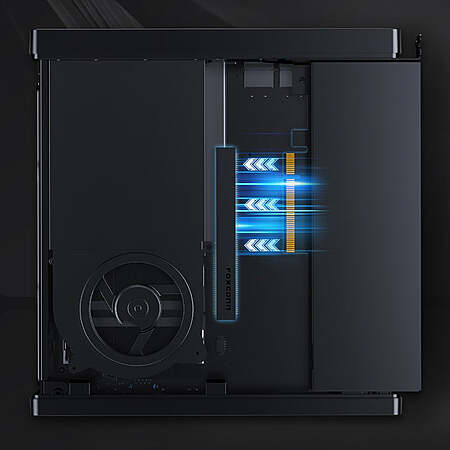

- 1x PCIe 4.0 x16 slot (Half-height, single-slot, supports up to PCIe 4.0 x8 speed, 70W TDP)

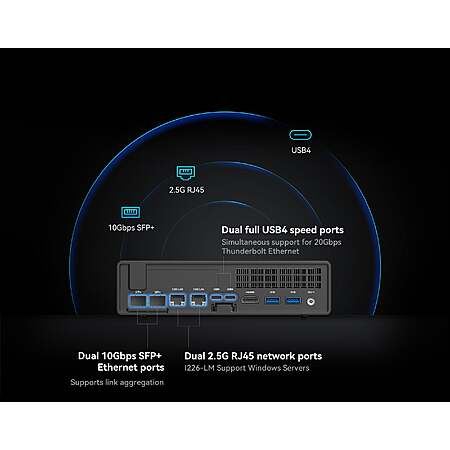

- Ports:
- 2x 10 Gbps SFP+ Lan (Intel X710 Dual Port NIC Chip)
- 2x 2.5 Gbps Rj45
- 1x HDMI 2.0 (4K@60Hz)

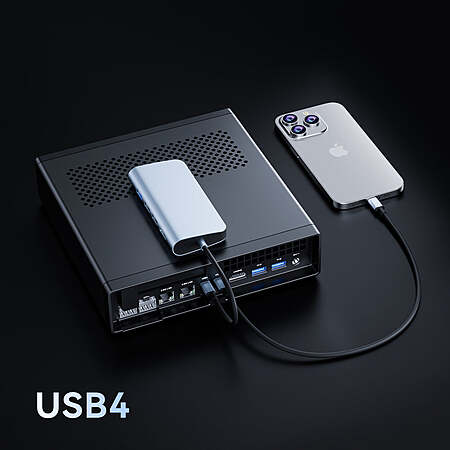

- 2x USB4 Type-C (DisplayPort 1.4a, 40 Gbps, supports 20G Thunderbolt Ethernet)
- 2x USB 3.2 Gen2 Type-A ports
- 2x USB 3.2 Gen1 Type-A ports
- 2x x USB 2.0 Gen1 Type-A ports
- 1x 3.5mm Audio Combo Jack
Package Contents:- 1x MS-01 main unit
- 1x Power adapter
- 1x Power cable
- 1x U.2 conversion plate
- 1x SSD heat sink
- 1x Mounting screw
- 1x HDMI cable
- 1x User's Manual
Top Comments
Anyway, Minisforum, has restricted the CPU to 65W by default (You can increase it from BIOS or use XTU) and for that it runs pretty cool, around 80 degree C at all core load. Check the review below: -
https://www.youtube.com/watch?v=N...l=E
Warning: it does appear you can easy fry your M.2
https://youtu.be/d3j4aEAZR7w
edit: ship dates are extending, now 3/29, just pay attention to the banner to know when it may start shipping. Once it ships it will be another week or so coming from China via DHL.
58 Comments
Sign up for a Slickdeals account to remove this ad.
edit: ship dates are extending, now 3/29, just pay attention to the banner to know when it may start shipping. Once it ships it will be another week or so coming from China via DHL.
Looks great, But, doesn't the i9 make this thing run as hot as hell? I don't see adequate cooling here. I might be missing something because they sell these all day.
If I tried to render a 3d animation with this I think it would run tooo hot.
In the future I could see a form factor where most what you see is a 3 fans of a cpu water cooler with awhole tiny computer built in to the fan structure. Or, simplified, this product with a 3 fan cpu water cooler glued to it.
Our community has rated this post as helpful. If you agree, why not thank Suryasis
Looks great, But, doesn't the i9 make this thing run as hot as hell? I don't see adequate cooling here. I might be missing something because they sell these all day.
If I tried to render a 3d animation with this I think it would run tooo hot.
In the future I could see a form factor where most what you see is a 3 fans of a cpu water cooler with awhole tiny computer built in to the fan structure. Or, simplified, this product with a 3 fan cpu water cooler glued to it.
Anyway, Minisforum, has restricted the CPU to 65W by default (You can increase it from BIOS or use XTU) and for that it runs pretty cool, around 80 degree C at all core load. Check the review below: -
https://www.youtube.com/watch?v=N...l=E
Our community has rated this post as helpful. If you agree, why not thank krew790
Warning: it does appear you can easy fry your M.2
https://youtu.be/d3j4aEAZR7w
Sign up for a Slickdeals account to remove this ad.
I've never looked into E&P cores, I'd think the compiler or OS would have to know these exist and how to use them, quick google indicates 'applications that are written with hybrid CPUs in mind may even spawn threads that are assigned to both kinds of cores depending on their demands' seems to suggest its all application based. Gaming reddits seem to suggest turning E off increase game performance. Now I've got to spend hours researching this.
AND per the pics, Intel AMT. Nice!
And what makes you think that 13th gen i7 will perform better? I hpe you know the simple fact that 13th Gen U, P and H series processors are exactly same as their 12th gen counterparts with minor clock speed boost, manufacturerd in same fabrication process.
