| Product Description: | Support for the latest rear-side connector mainboards
Ultra-fine Performance mesh with top mesh dust filter
Includes 4x M25-140 DRGB Fans included.

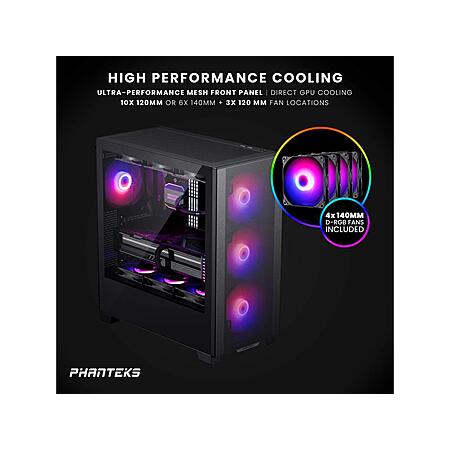

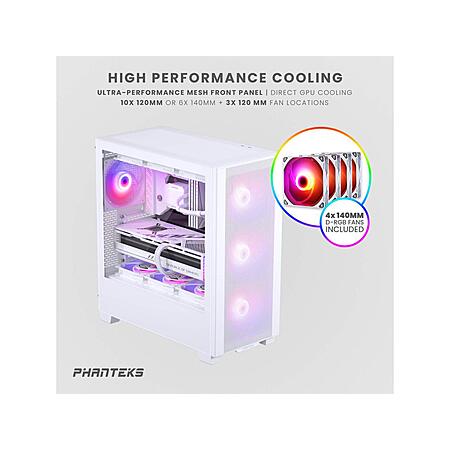

Support for up to 10x 120mm or 6x 140mm and 3x 120mm fan positions
Dedicated 360 radiator support in the top without restrictions
Support for the largest graphics cards without compromise |
| Product SKU: | N82E16811854133 |
| brand: | Phanteks |
| case_material: | Steel Chassis, Tempered Glass Window, ABS plastic |
| color: | Black |
| date_first_available: | February 19, 2024 |
| dimensions_h_x_w_x_d: | 17.7x9.05x19.68 in |
| expansion_slots: | 7, Also support Vertical GPU, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01, Front Panel Ports |
| fan_options: | Front: 3 x 120mm / 3 x 140mm, Top: 3 x 120mm / 2 x 140mm, Rear: 1 x 120mm / 1 x 140mm, Midplate: 3 x 120mm |
| front_ports: | 1x USB 3.0, 1x USB-C 3.2 Gen2, Microphone/Headphone Combo, Power Button, Reset Button, Cooling System |
| internal_25_drive_bays: | 2x (0x if 2x HDD installed) |
| internal_35_drive_bays: | 2x (1x if 2x SSD installed) |
| max_cpu_cooler_height: | 184 mm |
| max_gpu_length: | 415 mm |
| max_psu_length: | 270 mm |
| model: | PH-XT523P1_DBK01, Details |
| motherboard_compatibility: | ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide) |
| package_content: | XT Pro Chassis, 1 x Storage Bracket, 4 x M25-140_DBK Fan, 1 x D-RGB MB Adapter, Accessory Box:, 30 x Zip ties, 30 x MB/SSD Screw, 4 x Thumb Screw, 8 x HDD Screw, 1 x Standoff Tool, 1 x MB stand-off, 4 x PSU Screw, 12 x 30mm Fan Screw, , Additional Information |
| radiator_options: | Front: Up to 240 (120mm radiator), Top: Up to 360 (120mm radiator), Rear: Up to 120 (120mm radiator), Dimensions & Weight |
| series: | XT |
| side_panel_window: | Yes, Side Tempered Glass, Expansion |
| type: | Mid-Tower |
| weight: | 18.01lbs, Additional Info |
Leave a Comment
2 Comments
Sign up for a Slickdeals account to remove this ad.
Our community has rated this post as helpful. If you agree, why not thank Andrepartthree
https://www.tomshardwar
Here's a reddit review that goes into a fair amount of detail too
https://www.reddit.com/r/Phanteks...ra_r
