120-Count Kuject Self-Solder Heat Shrink Butt Wire Connectors
$6.30
$15
57% off
Amazon
Missed This Deal? Get alerts when similar deals are posted.
AmazonDeal Details
Amazon has 120-Count Kuject Self-Solder Heat Shrink Butt Wire Connectors on sale for $8.99 - 30% off when you click 'Redeem' on the product page or apply promo code U5ZKBT6B on the checkout page = $6.29. Shipping is free w/ Prime or on $35+ orders.
About this product:
- Note: Must be logged in to clip coupons; coupons are typically one-time use.
About this product:
- Solderless, crimpless, all you need is just a heat gun to finish the joint
- Fit for confined and narrow spaces and can be bent after connection
- Shrinkage ratio is 3:1
- Temperature that start to shrink: 80℃
- Temperature that solder ring start to melt: 111˚C
- Temperature that solder ring melt completely138˚C

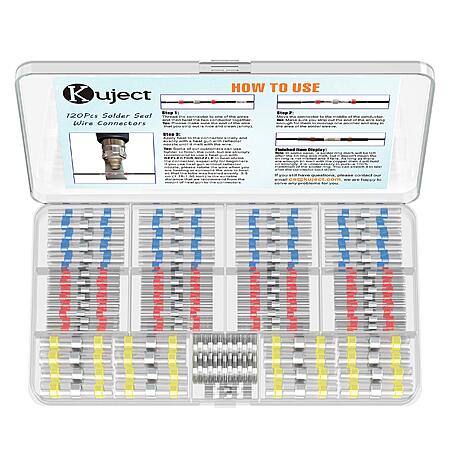

- Includes:
- 30x White Connectors: Diameter 1.7 mm, able cross-section 0.25-0.34 mm² (A.W.G.:26-24)
- 40x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18)
- 40x Blue Connectors: Diameter 4.5 mm, Cable cross-section 1.5-2.5 mm²( A.W.G.:16-14)
- 10x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10)
Editor's Notes
Written by jimmytx | Staff- About this Store:
- Don't have Amazon Prime? Students can get a free 6-Month Amazon Prime trial with free 2-day shipping, unlimited video streaming & more.
- If you're not a student, there's also a free 1-Month Amazon Prime trial available.
- Additional Information:
- This offer is slightly less ($0.10) than our front page deal price of $6.39 from July 2024 which earned over 35 thumbs up.
- Please see the original post for additional details and/or view the Wiki and forum comments for further helpful discussion if available.
Community Notes
About the Poster
Deal Details
Community Notes
About the Poster
Amazon has 120-Count Kuject Self-Solder Heat Shrink Butt Wire Connectors on sale for $8.99 - 30% off when you click 'Redeem' on the product page or apply promo code U5ZKBT6B on the checkout page = $6.29. Shipping is free w/ Prime or on $35+ orders.
About this product:
- Note: Must be logged in to clip coupons; coupons are typically one-time use.
About this product:
- Solderless, crimpless, all you need is just a heat gun to finish the joint
- Fit for confined and narrow spaces and can be bent after connection
- Shrinkage ratio is 3:1
- Temperature that start to shrink: 80℃
- Temperature that solder ring start to melt: 111˚C
- Temperature that solder ring melt completely138˚C
- Includes:
- 30x White Connectors: Diameter 1.7 mm, able cross-section 0.25-0.34 mm² (A.W.G.:26-24)
- 40x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18)
- 40x Blue Connectors: Diameter 4.5 mm, Cable cross-section 1.5-2.5 mm²( A.W.G.:16-14)
- 10x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10)
Editor's Notes
Written by jimmytx | Staff- About this Store:
- Don't have Amazon Prime? Students can get a free 6-Month Amazon Prime trial with free 2-day shipping, unlimited video streaming & more.
- If you're not a student, there's also a free 1-Month Amazon Prime trial available.
- Additional Information:
- This offer is slightly less ($0.10) than our front page deal price of $6.39 from July 2024 which earned over 35 thumbs up.
- Please see the original post for additional details and/or view the Wiki and forum comments for further helpful discussion if available.
Community Voting
Deal
Score
+27
Good Deal
Bad Deal
Top Comments
They look nice and hold okay when they work but you'll ruin 1 for every 2 good joints, reducing their convenience factor.
Join The Conversation
Share your experience with the Slickdeals community
Share information with the community. Please follow our Community Guidelines and be kind!
27 Comments
Sign up for a Slickdeals account to remove this ad.
There are many other kits is priced including one 200 piece for $7 ( can't link due to low seller reviews )
They look nice and hold okay when they work but you'll ruin 1 for every 2 good joints, reducing their convenience factor.
This one seems like a better deal.
This one seems like a better deal.
Sign up for a Slickdeals account to remove this ad.
They look nice and hold okay when they work but you'll ruin 1 for every 2 good joints, reducing their convenience factor.
I have never had one go bad using either a heat gun or just a lighter, but maybe I have been lucky so far.
They look nice and hold okay when they work but you'll ruin 1 for every 2 good joints, reducing their convenience factor.
I have terrible luck with these. I always end up with the plastic melted open and the solder still unmelted.
I have never had one go bad using either a heat gun or just a lighter, but maybe I have been lucky so far.
Absolutely flawed
They look nice and hold okay when they work but you'll ruin 1 for every 2 good joints, reducing their convenience factor.
These style of fusings work well in certain applications but not all. I wouldn't use them in critical application (unless my hand was forced) or high voltage/current. A great use case would be rewiring a trailer, or perhaps some automotive applications with striated wire. In-home use there are basically no cases where I'd use this, especially with 120V+. Maybe low voltage wiring (landscaping).
These style of fusings work well in certain applications but not all. I wouldn't use them in critical application (unless my hand was forced) or high voltage/current. A great use case would be rewiring a trailer, or perhaps some automotive applications with striated wire. In-home use there are basically no cases where I'd use this, especially with 120V+. Maybe low voltage wiring (landscaping).
This manufacturer has a different data showing Fluoroelastomer as their highest temperature product and requires nowhere near 500°F
https://www.insultab.co
HS-101 Polyolefin Heat Shrink Tubing 90°C 194°F
HS-101-3x Polyolefin Heat Shrink Tubing 100°C 212°F
HS-105 PVC Heat Shrink Tubing 100°C 212°F
HS-205 Cross-Linked PVC Heat Shrink Tubing 100°C 212°F
HS-101-MW 2:1 Polyolefin Adhesive Lined Heat Shrink Tubing 121°C 250°F
HS-101-MW 3:1 Polyolefin Adhesive Lined Heat Shrink Tubing 121°C 250°F
HS-101-MW Polyolefin Adhesive Lined Heat Shrink Tubing 135°C 275°F
VAT™-105 PVC Adhesive Lined Heat Shrink Tubing 100°C 212°F
HS-614 USFDA Food Grade Heat Shrink Tubing 121°C 250°F
HS-714 Xtra-Shield™ Acrylated Olefin USP Class VI Medical Grade Heat Shrink Tubing 121°C 250°F
HS-914 Xtra-Flex™ Polyvinylchloride USP Class VI Medical Grade Heat Shrink Tubing 93°C 200°F
HSK-600 Polyvinylidene Difluoride (PVDF) Heat Shrink Tubing 175°C 347°F
HSN-100 Chlorinated Polyolefin Elastomer Heat Shrink Tubi 135°C 275°F
HS-VTN Fluoroelastomer Heat Shrink Tubing 175°C 347°F
This data sheet is probably comparable to this product
Transparent Polyolefin heat shrink tubing, Solder and Adhesive Glue Ring. Simple one step soldering, sealed and insulated butt type connector. Finished connector ensures strong connection with strain relief and waterproof type connection.
Application: Wire connecting – butt splice type
Easy Identification: Color coded connector tubing (Red, Blue & Yellow)
Simple one step wire connections, no crimp tools required
Internal: Pre-formed solder ring
Outer Material: Polyolefin tubing
Operating Temperature: -55°C to 125°C
Minimum shrink temperature: 80°C 176°F
Minimum Solder melting temperature: 138°C 280°F
Sold individually
Complies with RoHS and CE standards
https://powerwerx.com/heat-shrink...connec
https://www.insultab.co
HS-101 Polyolefin Heat Shrink Tubing 90°C 194°F
HS-101-3x Polyolefin Heat Shrink Tubing 100°C 212°F
HS-105 PVC Heat Shrink Tubing 100°C 212°F
HS-205 Cross-Linked PVC Heat Shrink Tubing 100°C 212°F
HS-101-MW 2:1 Polyolefin Adhesive Lined Heat Shrink Tubing 121°C 250°F
HS-101-MW 3:1 Polyolefin Adhesive Lined Heat Shrink Tubing 121°C 250°F
HS-101-MW Polyolefin Adhesive Lined Heat Shrink Tubing 135°C 275°F
VAT™-105 PVC Adhesive Lined Heat Shrink Tubing 100°C 212°F
HS-614 USFDA Food Grade Heat Shrink Tubing 121°C 250°F
HS-714 Xtra-Shield™ Acrylated Olefin USP Class VI Medical Grade Heat Shrink Tubing 121°C 250°F
HS-914 Xtra-Flex™ Polyvinylchloride USP Class VI Medical Grade Heat Shrink Tubing 93°C 200°F
HSK-600 Polyvinylidene Difluoride (PVDF) Heat Shrink Tubing 175°C 347°F
HSN-100 Chlorinated Polyolefin Elastomer Heat Shrink Tubi 135°C 275°F
HS-VTN Fluoroelastomer Heat Shrink Tubing 175°C 347°F
That's because POLYOLEFIN refers to mostly PP or HDPE, not fluoropolymer. See the last few entries there? PVDF and "Fluoroelastomer" - their ratings are much higher.
Note what I said though - the other person was complaining about the shrink tube portion MELTING. To get it to shrink, you just need to heat it up to its Tg (glass transition temp), not its melting point, although there will be a correlation (e.g. polyolefins will have lower melt temp AND Tg than fluoropolymers).
Sign up for a Slickdeals account to remove this ad.
Note what I said though - the other person was complaining about the shrink tube portion MELTING. To get it to shrink, you just need to heat it up to its Tg (glass transition temp), not its melting point, although there will be a correlation (e.g. polyolefins will have lower melt temp AND Tg than fluoropolymers).
I did edit to make clear that this manufacturer highest temp is for Fluoroelastomer at 347° as a comparison to your assertion that 500° is ideal
