expired Posted by daviiddlt • Sep 22, 2022
Sep 22, 2022 12:45 PM
Item 1 of 5
Item 1 of 5
expired Posted by daviiddlt • Sep 22, 2022
Sep 22, 2022 12:45 PM

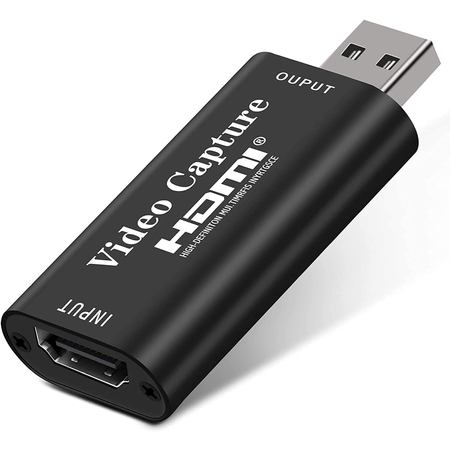

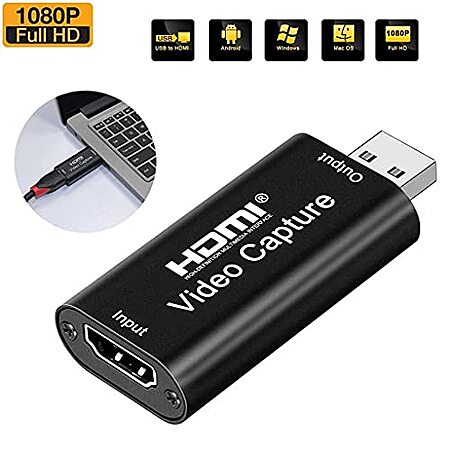

DIGITNOW 4K HDMI to 1080p USB Video Capture Card
$9.00
$17
47% offAmazon
Visit AmazonGood Deal
Bad Deal
Save
Share
Top Comments
Some notes:
- Shows up on the PC (Win) as a normal video device, no other drivers needed
- Can spit out 1280*720 @ 60fps max, 1920*1080 will max out at 30fps

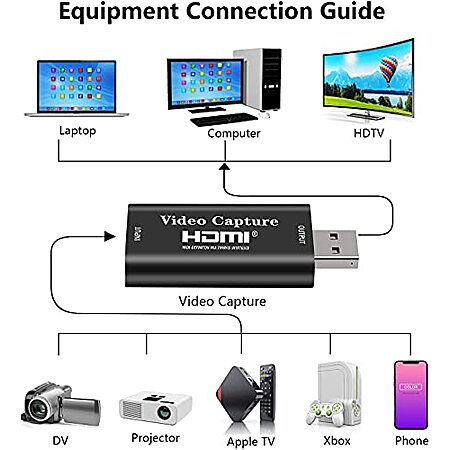

- If you're wanting to capture live gameplay from a console/etc, you're probably going to want an HDMI splitter, in order to split to the capture dongle and a monitor/tv at the same time...these devices add anywhere from 5 to 12 frames of delay between the input to the capture, and then it showing up in OBS/whatever, depending on the output res/framerate. Depending on the game type, this might be a non-issue.
-- (There are other same-guts capture devices for usually 2x more that mention having 'Loop'...they just have an internal splitter included)...and then the 'With Audio' versions also have a 3.5mm jack for injecting audio...like from a microphone)
- Audio is output in a weird way: It takes the stereo channels and interleaves them into a mono 96khz output. Grab https://github.com/ToadKing/mono-...o/releases and run it after the dongle is connected, and it will output normal 48khz stereo audio. Pressing Enter will exit the program.
- There is no actual 'USB 3.0' version. It's just blue plastic in the plug, 4 USB 2.0 pins. 'usbdeview'/'usbtreeview'/etc can quickly confirm it's a USB 2 device in Windows.
77 Comments
Sign up for a Slickdeals account to remove this ad.
Sign up for a Slickdeals account to remove this ad.
Probably need a splitter that removes HDCP.
Our community has rated this post as helpful. If you agree, why not thank JLsoft
Some notes:
- Shows up on the PC (Win) as a normal video device, no other drivers needed
- Can spit out 1280*720 @ 60fps max, 1920*1080 will max out at 30fps
- If you're wanting to capture live gameplay from a console/etc, you're probably going to want an HDMI splitter, in order to split to the capture dongle and a monitor/tv at the same time...these devices add anywhere from 5 to 12 frames of delay between the input to the capture, and then it showing up in OBS/whatever, depending on the output res/framerate. Depending on the game type, this might be a non-issue.
-- (There are other same-guts capture devices for usually 2x more that mention having 'Loop'...they just have an internal splitter included)...and then the 'With Audio' versions also have a 3.5mm jack for injecting audio...like from a microphone)
- Audio is output in a weird way: It takes the stereo channels and interleaves them into a mono 96khz output. Grab https://github.com/ToadKing/mono-...o/releases and run it after the dongle is connected, and it will output normal 48khz stereo audio. Pressing Enter will exit the program.
- There is no actual 'USB 3.0' version. It's just blue plastic in the plug, 4 USB 2.0 pins. 'usbdeview'/'usbtreeview'/etc can quickly confirm it's a USB 2 device in Windows.
