Minisforum UM690S Mini PC: Ryzen 9 6900HX, 680M Graphics (Barebone)

$351
$439.00
& More + Free S&H
+40 Deal Score
49,194 Views
Minisforum has Minisforum UM690S Mini PC in various configurations on sale listed below. Shipping is free.

Thanks to Community Member Suryasis for sharing this deal.

Note: You may order now but delivery is currently unavailable due to holiday and will resume October 7.

Available:Specs (Barebone):
  • Ryzen 9 6900HX 8C/16T 3.3 GHz
  • AMD Radeon 680M 2400MHz Graphics
  • 2x DDR5 SODIMM Slot (64GB Max)
  • 1x M.2 2280 PCIe 4.0 SSD Slot
  • Supports M.2 2230 Wi-Fi + Bluetooth

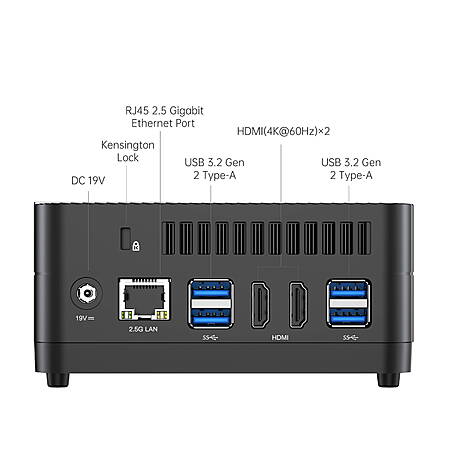

  • Ports:
    • 1x RJ45 2.5 Gigabit Ethernet Port
    • 4x USB 3.2 Gen2 Type-A
    • 1x USB 3.2 Gen2 Type-C (Data Transfer, Front, Right)
    • 1x USB4 Type-C (Front, Left)
    • 2x HDMI
    • 1x Clear CMOS
    • 1x DMIC
    • 1x 3.5mm Combo Jack

Editor's Notes & Price Research

Written by
  • Deal Image
  • Deal Image
  • Deal Image
  • Deal Image
Deal Image
Get Deal at Minisforum

Original Post

Written by
Edited September 29, 2023 at 12:35 PM by
Barebone [minisforum.com] @ $351
32GB RAM + 512GB SSD [minisforum.com] @ $479
32GB RAM + 1TB SSD [minisforum.com] @ $503
64GB RAM+1TB SSD [minisforum.com] @ $575

Note: Windows 11 License Key is only available with Ram + Storage model and not available with Barebone.

Spec:
  • Ryzen 9 6900HX 8C/16T 3.3 GHz (4.9 GHz Boost, 20MB Cache)
  • Radeon 680M Graphics @ 2400 MHz
  • 2x SODIMM Slot (64GB Max)
  • 1x M.2 2280 PCIe Gen 4x4 Slot
  • 1x 2.5" Drive Bay
  • 1x M.2 2230 Slot for NIC (Occupied)
  • Wi-Fi 6E 2x2 + Bluetooth 5.2

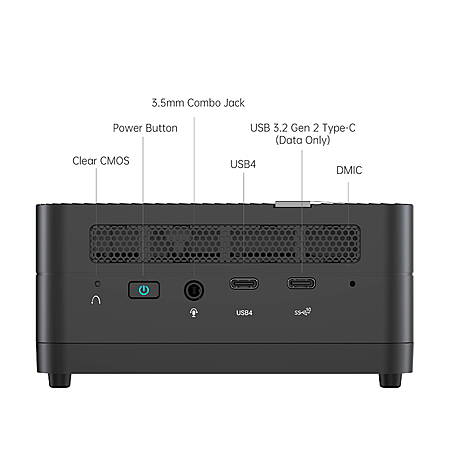

  • Ports:
    • 4x USB 3.2 Gen 2 Type-A 10 Gbps
    • 1x USB 3.2 Gen 2 Type-C 10 Gbps (Data Only)
    • 1x USB4 Type-C (40 Gbps, DisplayPort 1.4a)
    • 2x HDMI 2.0
    • 1x 3.5mm Combo Jack
    • 1x Clear CMOS
    • 1x DMIC
Add Comment
Reply
Created 09-27-2023 at 11:47 PM by Suryasis
in Desktop Computers (12) Get Minisforum Coupons
If you purchase something through a post on our site, Slickdeals may get a small share of the sale.
Deal
Score +40
49,194 Views
$351
$439.00
Get Deal at Minisforum

89 Comments

View Forum Thread
12345

Your comment cannot be blank.

Featured Comments

This is better than NAB6. The CPu performance is similar but the 680M has nearly 2X the performance of the Intel Xe Graphics with 64 EU in 12650H. Remember, i7-12650H is a stripped down i7-12700H as it has only half of the E Cores (4 vs 8 in 12700H). Similarly, unlike other i7 with 96 EU based Iris Xe Graphics, 12650H has only 64 EU.
Also, this model has USB4 which is equivalent to Thunderbolt 3/4 and you can add external GPU dock or any new Thunderbolt docking stations. NAB6 lacks it and only has normal Type-C with Display out.
·
It is actually a bit overkill for that.
·
Beelinks are usually a little better. Beelink is the top mini company out of all these Chinese mini makers. Minisforum is probably #2 but there is a gap between them and beelink. Beelink has better customer service and quality control. Minisforum is no slouch though, just don't expect it to be better than beekink for a comparative model
·

Sign up for a Slickdeals account to remove this ad.

Joined May 2010
L4: Apprentice
> bubble2 347 Posts
74 Reputation
chagla
09-28-2023 at 09:54 AM.
09-28-2023 at 09:54 AM.
How is their NAB6 model with intel i7 12th gen cpu barebone for similar price? I wish these had 2x PCIE SSD instead of 1 PCIE and 1 SATA.
1
Like
Funny
>
Helpful
Not helpful
Reply
Joined Jul 2015
L10: Grand Master
> bubble2 18,658 Posts
16,961 Reputation
Original Poster
Pro
Expert
This user is an Expert in Computers
Suryasis
09-28-2023 at 10:59 AM.

Our community has rated this post as helpful. If you agree, why not thank Suryasis

09-28-2023 at 10:59 AM.
Quote from chagla :
How is their NAB6 model with intel i7 12th gen cpu barebone for similar price? I wish these had 2x PCIE SSD instead of 1 PCIE and 1 SATA.
This is better than NAB6. The CPu performance is similar but the 680M has nearly 2X the performance of the Intel Xe Graphics with 64 EU in 12650H. Remember, i7-12650H is a stripped down i7-12700H as it has only half of the E Cores (4 vs 8 in 12700H). Similarly, unlike other i7 with 96 EU based Iris Xe Graphics, 12650H has only 64 EU.
Also, this model has USB4 which is equivalent to Thunderbolt 3/4 and you can add external GPU dock or any new Thunderbolt docking stations. NAB6 lacks it and only has normal Type-C with Display out.
17
>
5
Like
Funny
>
Helpful
Not helpful
Reply
Joined Sep 2010
L5: Journeyman
> bubble2 860 Posts
213 Reputation
mew0o
09-28-2023 at 03:01 PM.
09-28-2023 at 03:01 PM.
I was going to wait until next year for AMD's strix point APU, but this is really tempting at this price.
2
