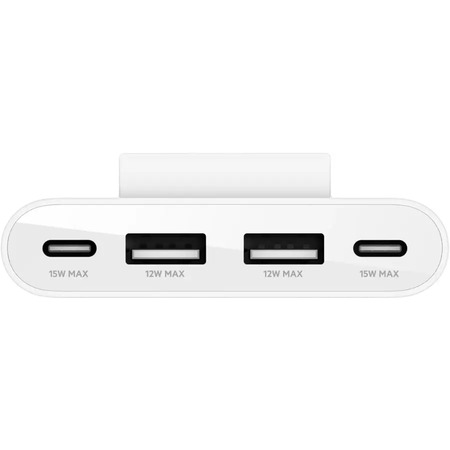

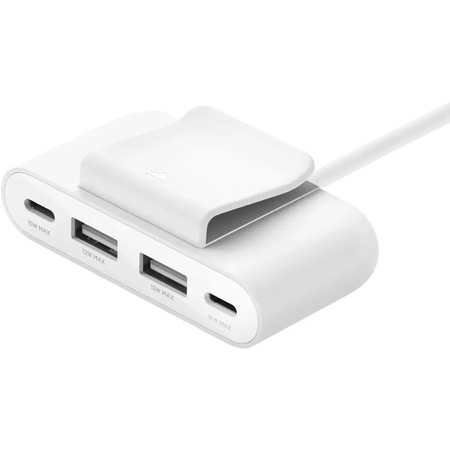

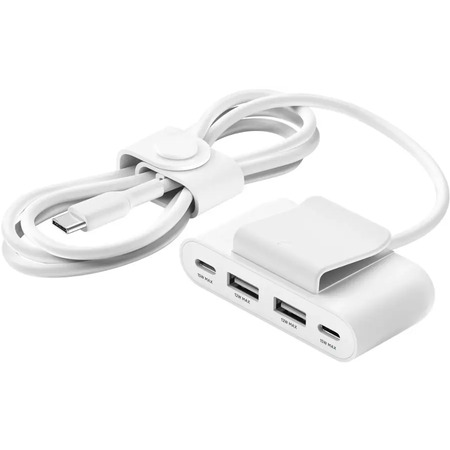

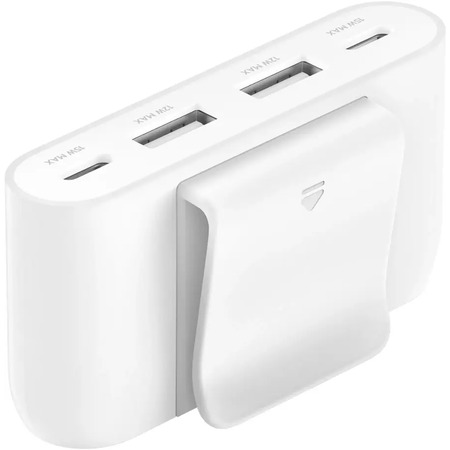

Belkin BoostCharge 4-Port USB Power Extender (2x USB-C & 2x USB-A)
+ Free Shipping$12
$25
52% offBest Buy
Visit Best BuyGood Deal
Bad Deal
Save
Share
Leave a Comment
Top Comments
Good luck!
Jon
Instead this device accepts an incoming Power Delivery 30W source. Documentation is unclear as to whether this supports 15V 2A and/or 20V 1.5A as the 30W source.
I would guess (without better documentationf from Belkin) that on the output side only 5V is output at up to the current (amperage) limit of the associated port type: up to 3A for USB-C, or up to 2.4A for USB-A. This is created through DC to DC power conversion taking the incoming higher-voltage (15V or 20V), lower current (2A or 1.5A) source and transforming it into a low-voltage (5V), higher-current (up to 3A in a single USB-C port, up to 6A across all ports max.) supply. Note that it is possible that higher voltage profiles might be supported on the USB-C output ports, but this would be surprising given the low output power ratings. As noted below, this device only supports 5V output.
Sorry if this is a bunch of technical stuff, but know that the short version is that the Belkin device is far from passive. Rather, it is an active power converter that must convert the incoming voltage as well as negotiate with any connected devices being charged,
Good luck!
Jon
27 Comments
Sign up for a Slickdeals account to remove this ad.
Our community has rated this post as helpful. If you agree, why not thank AquaPicture2620
Our community has rated this post as helpful. If you agree, why not thank EfficientSnail709
Our community has rated this post as helpful. If you agree, why not thank The_Love_Spud
Good luck!
Jon
Sign up for a Slickdeals account to remove this ad.
It's possible that there are no more available for shipping. I tried to get two and ended up with one. That may also vary by location (as they have multiple warehouses). It's all potentially YMMV.
Good luck!
Jon
Our community has rated this post as helpful. If you agree, why not thank The_Love_Spud
Instead this device accepts an incoming Power Delivery 30W source. Documentation is unclear as to whether this supports 15V 2A and/or 20V 1.5A as the 30W source.
I would guess (without better documentationf from Belkin) that on the output side only 5V is output at up to the current (amperage) limit of the associated port type: up to 3A for USB-C, or up to 2.4A for USB-A. This is created through DC to DC power conversion taking the incoming higher-voltage (15V or 20V), lower current (2A or 1.5A) source and transforming it into a low-voltage (5V), higher-current (up to 3A in a single USB-C port, up to 6A across all ports max.) supply.
Note that it is possible that higher voltage profiles might be supported on the USB-C output ports, but this would be surprising given the low output power ratings.As noted below, this device only supports 5V output.Sorry if this is a bunch of technical stuff, but know that the short version is that the Belkin device is far from passive. Rather, it is an active power converter that must convert the incoming voltage as well as negotiate with any connected devices being charged,
Good luck!
Jon
Instead this device accepts an incoming Power Delivery 30W source. Documentation is unclear as to whether this supports 15V 2A and/or 20V 1.5A as the 30W source.
I would guess (without better documentationf from Belkin) that on the output side only 5V is output at up to the current (amperage) limit of the associated port type: up to 3A for USB-C, or up to 2.4A for USB-A. This is created through DC to DC power conversion taking the incoming higher-voltage (15V or 20V), lower current (2A or 1.5A) source and transforming it into a low-voltage (5V), higher-current (up to 3A in a single USB-C port, up to 6A across all ports max.) supply. Note that it is possible that higher voltage profiles might be supported on the USB-C output ports, but this would be surprising given the low output power ratings.
Sorry if this is a bunch of technical stuff, but know that the short version is that the Belkin device is far from passive. Rather, it is an active power converter that must convert the incoming voltage as well as negotiate with any connected devices being charged,
Good luck!
Jon
Our community has rated this post as helpful. If you agree, why not thank PowerfulName4771
With 4 devices connected - ideally it should be 7.5W per device. However, on actual observations it's more like 7.5W for the USB C and 5W for the USB-A.
In short, it's useful to charge lower power devices such as earbuds or smartwatch- but really not superuseful for 2 or 3 phones together. Still serves ok for 1 phone and low powered accessories.
