Coupon Code: 10% Off via
VGZRE8VT
Spec:- Windows 11 Pro
- CPU:
- Intel N97 4C/4T (3.6 GHz Turbo, 6MB Cache, 12W TDP) OR
- Intel N100 4C/4T (3.4 GHz Turbo, 6MB Cache, 6W TDP) OR
- Intel N150 4C/4T (3.6 GHz Turbo, 6MB Cache, 6W TDP)

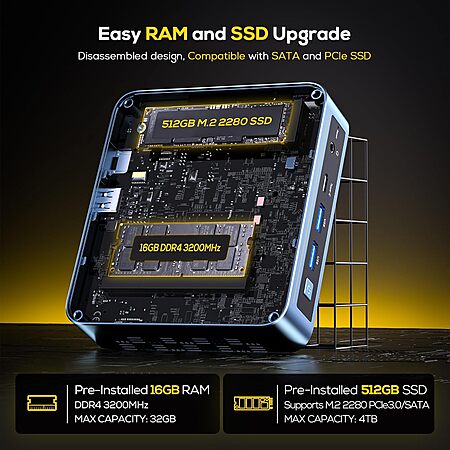

- 1x 16GB DDR4-3200 Memory (32GB max, single SODIMM)
- 512GB M.2 2280 SATA III SSD (PCIe Gen 3 X2 or SATA SSD Support)
- Intel UHD Graphics (24 Xe-LP EU, 1.2 GHz for N97, 1 GHz for rest)
- Realtek Wi-Fi 5 2x2 + Bluetooth 4.2
- 124*112*35mm, 270g

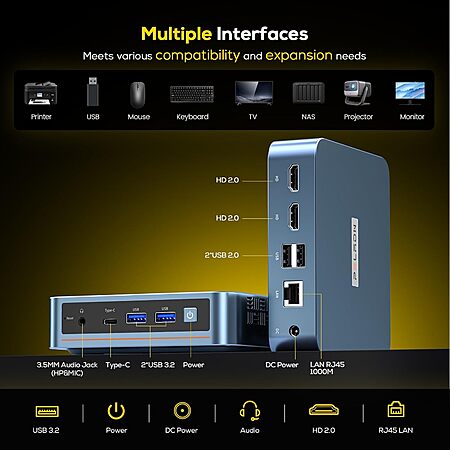

- Ports:
- 2x USB-A 3.2 GEN 2 10 Gbps
- 2x USB 2.0 Type-A
- 1x USB-C 3.2 GEN 2 10 Gbps (DP 1.2 4K@60Hz, USB PD IN)
- 2x HDMI 2.0 (4K@60Hz)
- 1x Realtek RJ-45 1G Lan
- 1x 3.mm Audio Combo Jack
- 1x DC-in power adapter port
- 1x Power Port
- 1x Reset hole
- 1x 12V 3A Barrel Pin Power Adapter
Also available:
PELADN Wi-9 Mini PC: [amazon.com] Intel N150, 16GB DDR4, 512GB SSD, Dual M.2 Storage, 3x 4K Out, 1G Lan, Win11P @ $188.10
Coupon: 10% OFF Via
VGZRE8VT
Spec:
- Windows 11 Pro
- Intel N150 4C/4T CPU 3.4 GHz (3.6 GHz Turbo, 6MB L3 Cache)
- Intel UHD Graphics (24 Xe Cores @ 1 GHz)
- 16GBx1 DDR4 3200 MT/s Memory (Up to 32GB)
- 512GB M.2 2280 SATA III SSD
- 1x M.2 2242 PCIe 3.0 X1/SATA III Slot
- 1x M.2 2280 PCIe 3.0 X1/SATA III Slot (Populated with current SSD)
- 1x M.2 2230 Slot for WLAN Card (Occupied)
- Realtek Wi-Fi 5 2x2 + Bluetooth 4.2
- Ports:
- 2x USB-A 3.2 Gen 2 10 Gbps
- 2x USB-A 2.0
- 1x USB-C 3.2 Gen 2 10 Gbps (DP 1.2, 4K@60Hz)
- 2x HDMI 2.0 (4K@60Hz)
- 1x RJ-45 Gigabit Lan (1G)
- 1x 3.5mm Audio Combo Jack
- 1x Power Button
- 1x Reset Hole
- 1x DC-In Port
Leave a Comment
8 Comments
Sign up for a Slickdeals account to remove this ad.
Performance Wise: N97>N150>N100
All the models of WI6 has a 36W Barrel Pin Power Adapter but support power via the Type-C port as well. So, Single Cable operation is possible with Monitors and displays, supporting USB-C DP Alt mode and power Delivery out.
The WI9 model only comes with N150 and the main advantage it has that it has two M.2 slots for storage, one 2280 and one 2242, supporting both PCIe 3.0 and SATA M.2 SSDs. However, the speed is PCIe X1 per Slot due to the only 9 PCIe lanes available from the SOC. However, for NAS and other usecases, that speed is still fine.
Regarding these particular Mini PC, there are actually cheaper N series Mini PC, around $150 range even I was curius why these are a bit expensie compared to those but if you see the configuration, you will get why:
This model multiple Gen 2 10 Gbps USB-A ports whereas most budget one has 5 Gbps
These model has a full function 10 Gbps Gen 2 USB-C port, with Display Out, Power Delivery and Data whereas some of those cheaper option completely lack one. if you have a display capable of USB-C Input and PD out, you can literally use single USB-C cable to connect to display and get power.
Sign up for a Slickdeals account to remove this ad.
ETA: I overestimated a bit. Here's one for $330.
